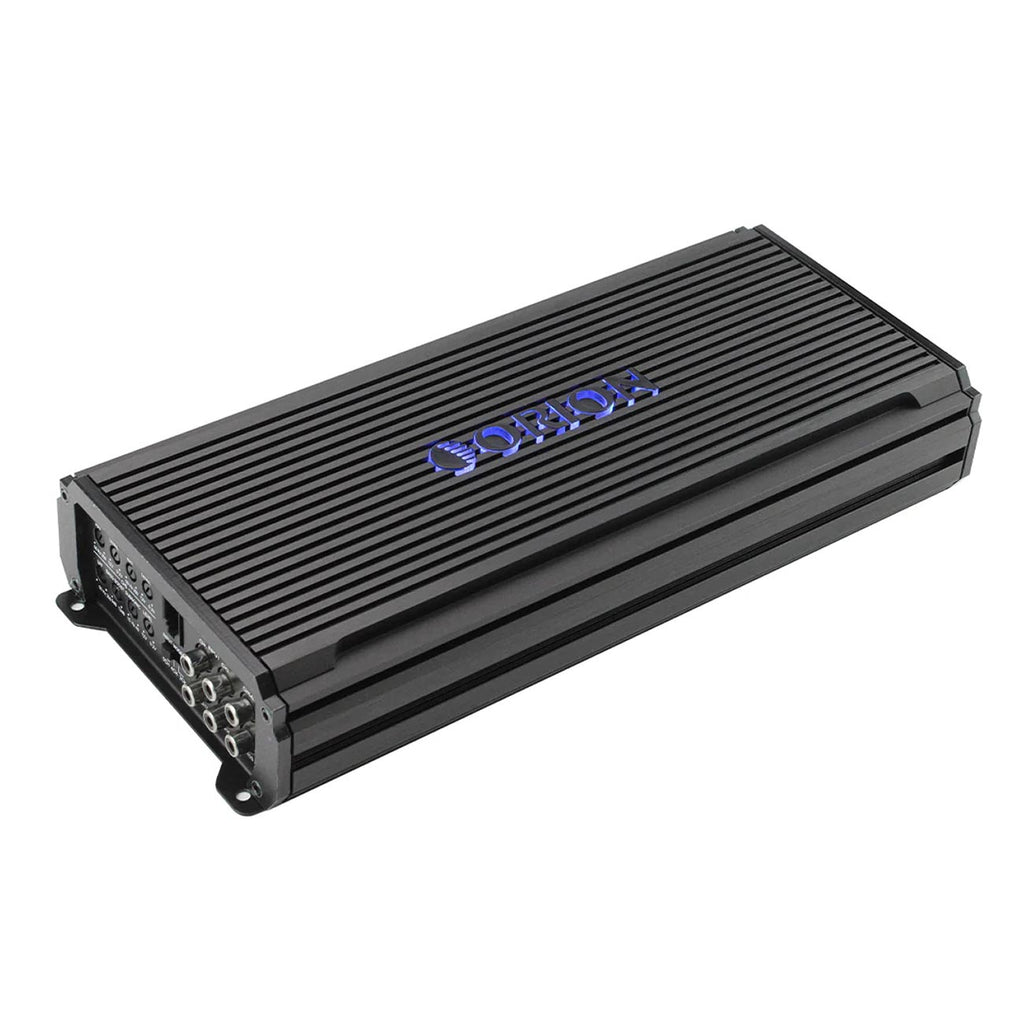

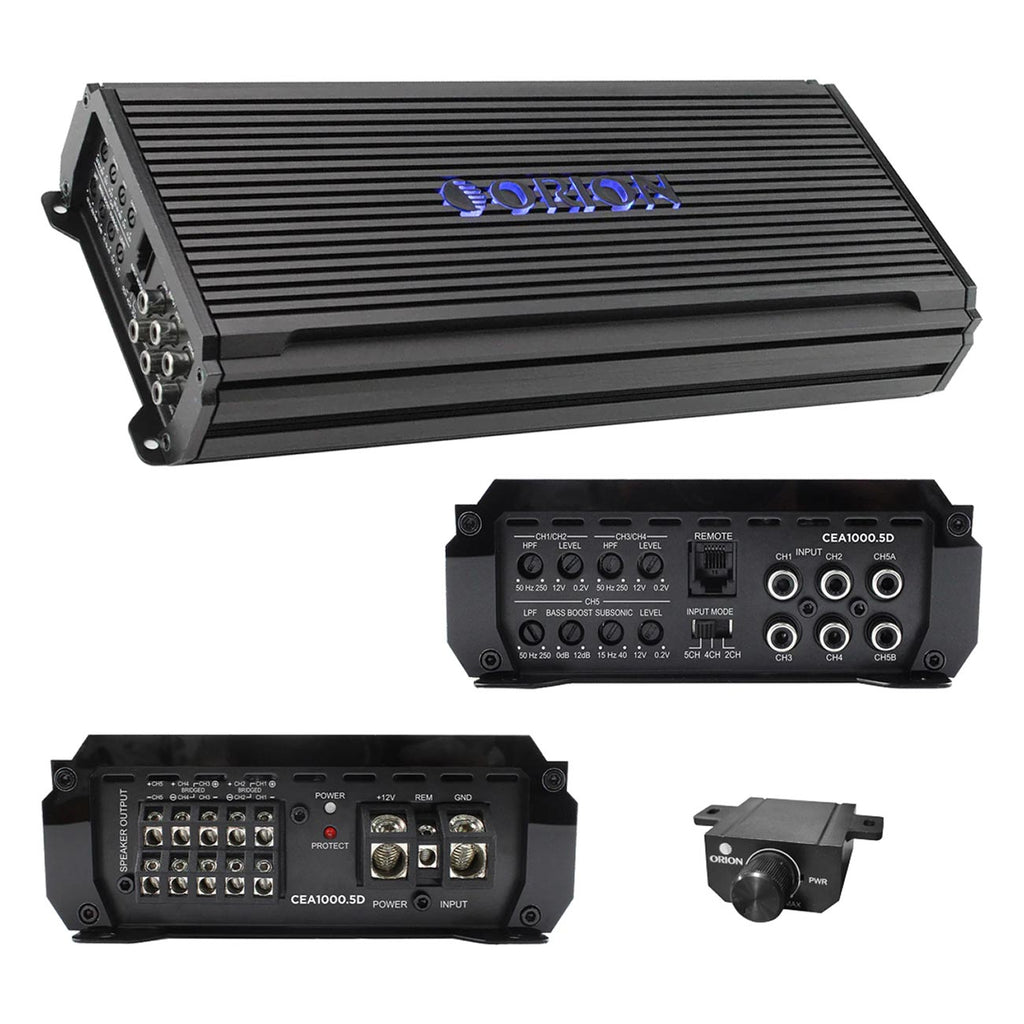

Orion Cobalt Elite Compact Class-D 5 Channel Amplifier, 1000 Watt RMS
$239.95
Skip to product information
Orion Cobalt Elite Compact Class-D 5 Channel Amplifier, 1000 Watt RMS
$239.95
Orion Cobalt Elite Compact Class-D 5 Channel Amplifier, 1000 Watt RMS
- Channels: 5 Channel
- RMS Power: 1,000W
- Stable to: 1 Ohm
- Amplifier Class: D
- SKU: CEA10005D
Specifications
- 1 x 650 Watts RMS @ 1 Ohm (Sub)
- 4 x 120 + 400 Watts RMS @ 2 Ohms
- 4 x 80 + 250 Watts RMS @ 4 Ohms
- 2 x 300 Watts RMS @ 2 Ohms (CH 1-4 Bridged)
- (W x H x L): 5.71″ x 2.13″ x 12.17″
- Fuse Recommendation: 120 Amp
- Efficient Class-D
- Channels 1-4
- 2 Ohm Stable
- Frequency Response: 40 Hz – 30kHz
- High Pass Filter: 50Hz – 250Hz
- Low Pass Filter: 50Hz – 250Hz
- Channel 5 (Sub)
- 1 Ohm Stable
- Frequency Response: 15Hz – 250Hz
- Subsonic: 15 – 40Hz
- Low Pass Crossover: 50 – 250Hz
- Bass Boost: 0 – 12dB Variable
- Supply Voltage: 10 – 16V
- Signal to Noise Ratio: 98dB
- Bass Boost: 0 – 12dB (Variable)
