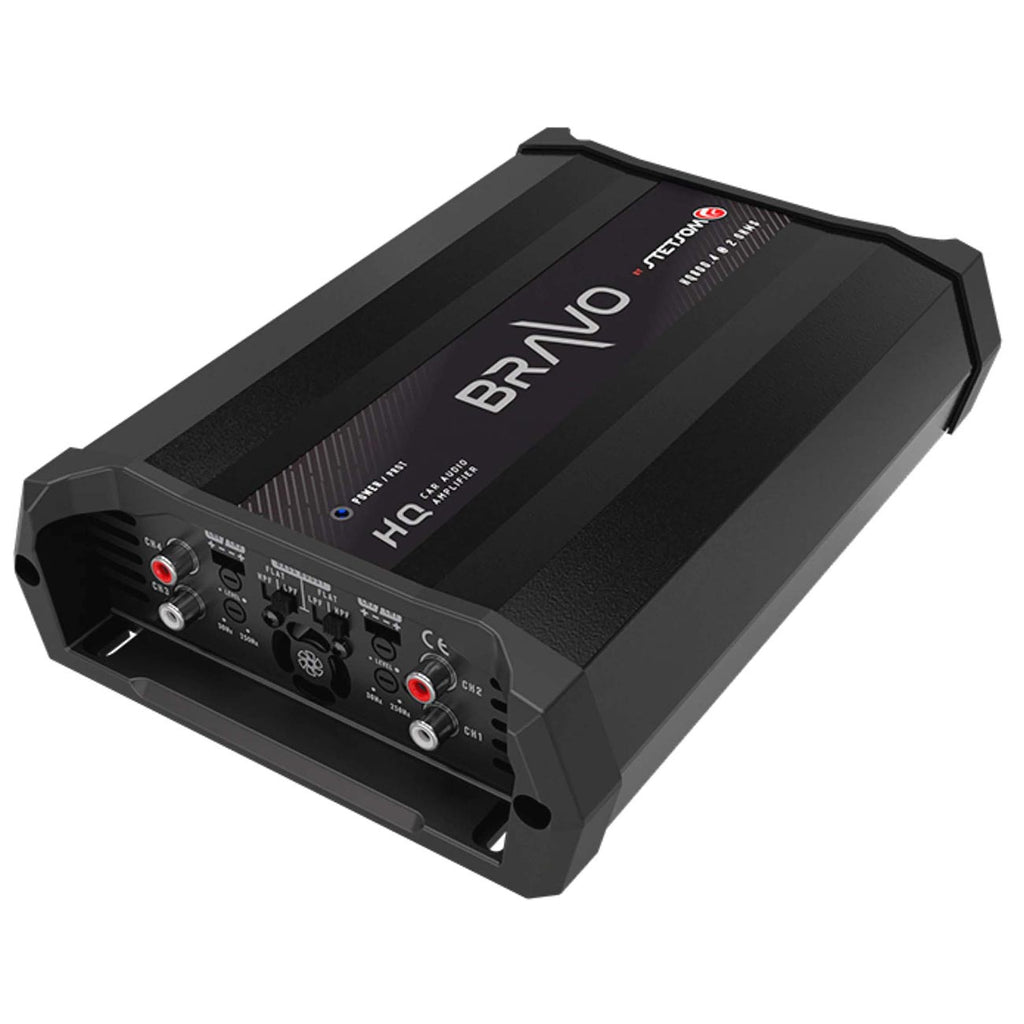

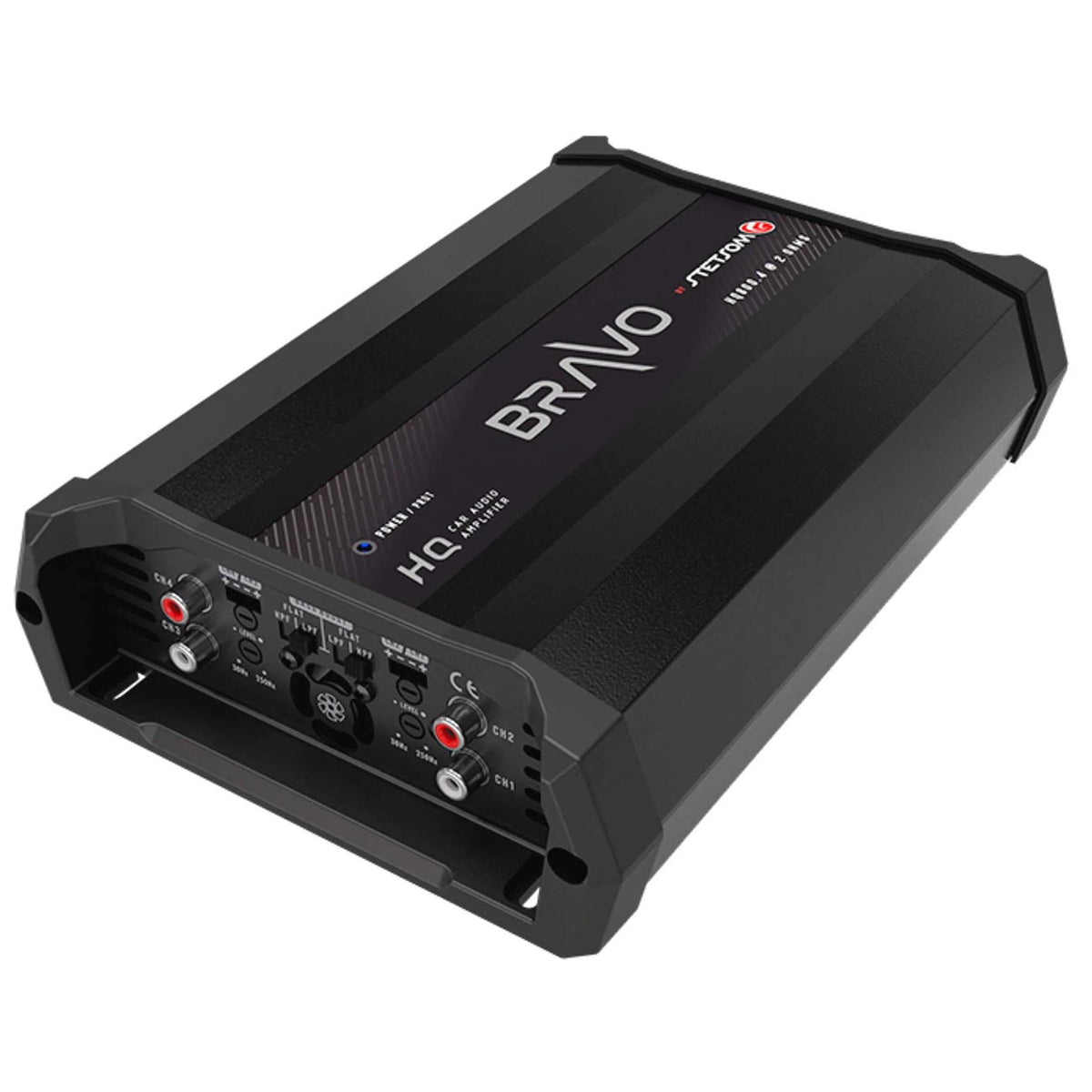

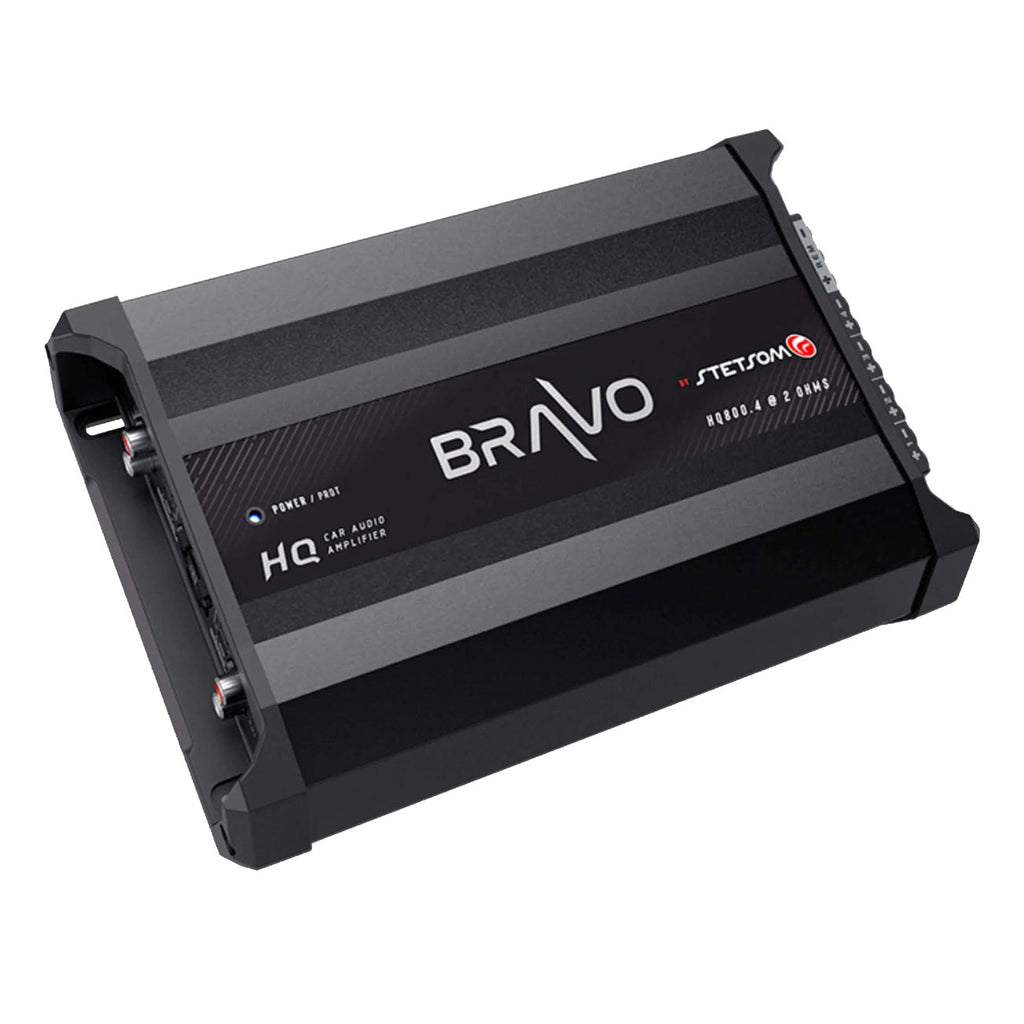

Stetsom Bravo HQ Digital 4 Channel Amplifier, 800W RMS @2ohm

Stetsom Bravo HQ Digital 4 Channel Amplifier, 800W RMS @2ohm

• Channels: 4 Channel
• RMS Power: 800W
• Stable to: 2 Ohm
• Amplifier Class: D
• SKU: BRAVOHQ80042OHM

Specifications

• 4 x 250W RMS @ 2 Ohm (14.4V)
• 4 x 170W RMS @ 4 Ohm (14.4V)
• 2 x 500W RMS @ 4 Ohm (14.14V) Bridged
• (H x W x L): 2.3″ x 6.6″ x 9.3″
• Recommended Fuse: 40A (Not Included)
• 4 x 200W RMS @ 2 Ohm (12.6V)
• 4 x 130W RMS @ 4 Ohm (12.6V)
• 2 x 400W RMS @ 4 Ohm (12.6V) Bridged
• Class D
• 2 Ohm Stable
• Supply Voltage: 9V ~ 17V DC
• Frequency Response: 5 Hz ~ 30 kHz
• Crossover Low Pass: 50 Hz ~ 2.3 kHz
• Crossover High Pass: 50 Hz ~ 2.3 kHz
• Boost: +12dB (with switch in L.P.F)
• Signal to Noise: >80 dB
• High/Low Level Inputs
• Input Impedance RCA: 18 KOhms
• Input Impedance HIGH INPUT: 1 KOhms
• Musical Consumption: 43A
• BASS Consumption: 86A
