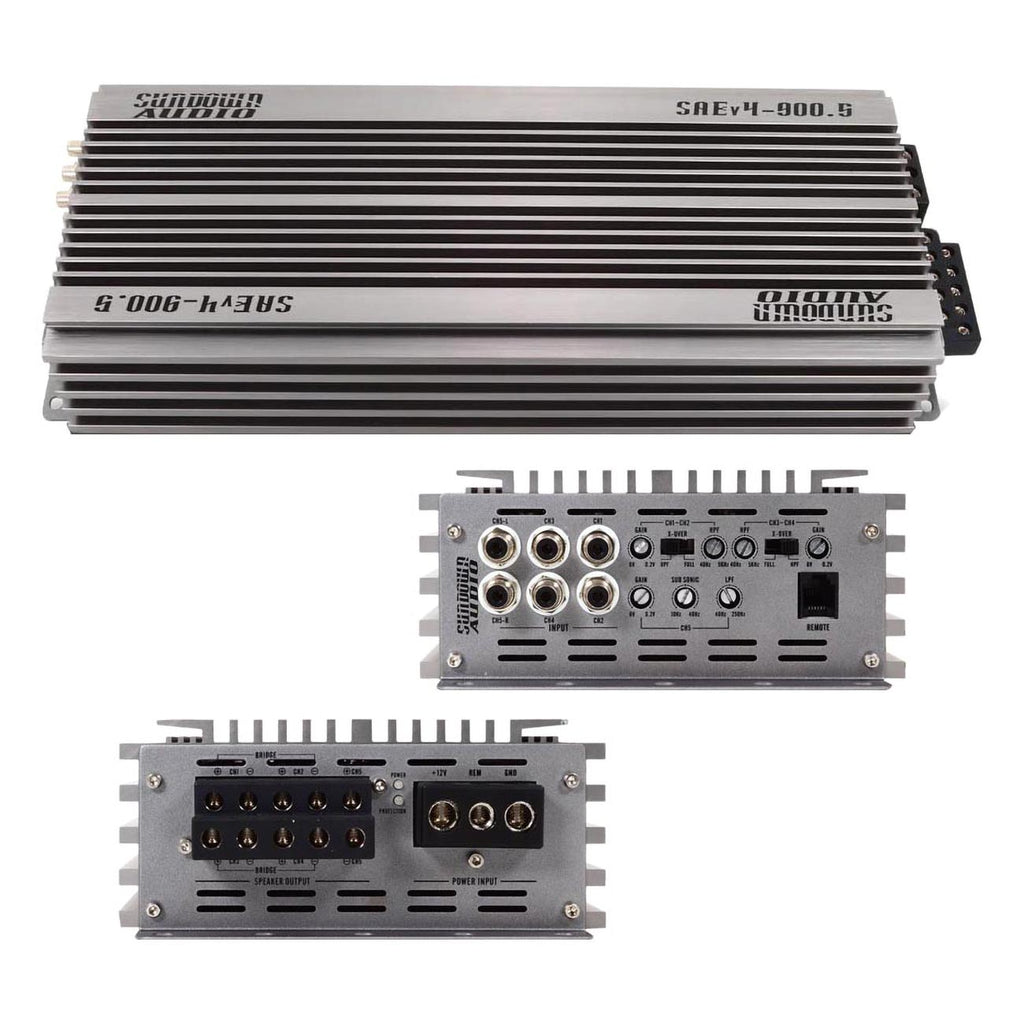

Sundown Audio 5-Channel Amplifier, 2100W RMS

Sundown Audio 5-Channel Amplifier, 2100W RMS

• Channels: 5 Channel
• RMS Power: 2,100W
• Stable to: 2 Ohm
• Amplifier Class: A/B
• SKU: SAEV49005

Specifications

• Sundown Audio Version 4 – 5-Channel Class-A/B Amplifier – 2100W RMS
• MOSFET PWM Power Supply
• • 1 x 500 Watts RMS @ 1 Ohm (CH 5 Only) •
• 4 x 120 + 325 Watts RMS @ 2 Ohms
• 4 x 80 + 225 Watts RMS @ 4 Ohms
• (W x H x D) 6.3″ x 2.75″ x 17.4″
• 2-Ohm Stable
• Hi-fidelity Class A/B+D design
• High Pass Filter: 40 – 5 kHz (12 dB/Octave) (CH 1-4)
• Low Pass Filter: 40 – 250 Hz (12 dB/Octave) (CH 5)
• Subsonic Filter: 10 – 40 Hz (12 dB/Octave) (CH 5)
• Gain Control: 0.2V – 6.0V
• S/N Ratio: 92dB
• RCA Inputs
• Clipping, Power & Protect LED Indicators
• 4-Way Protection (Thermal, Voltage, Short & DC Offset)
• Soft Turn-On Circuit
• Remote On/Off Circuit
• Working Voltage: 10.5V – 15.5VDC
• Fuse & Holder NOT Included
• Optional Wired Remote with Clipping LED Indicator NOT Included
