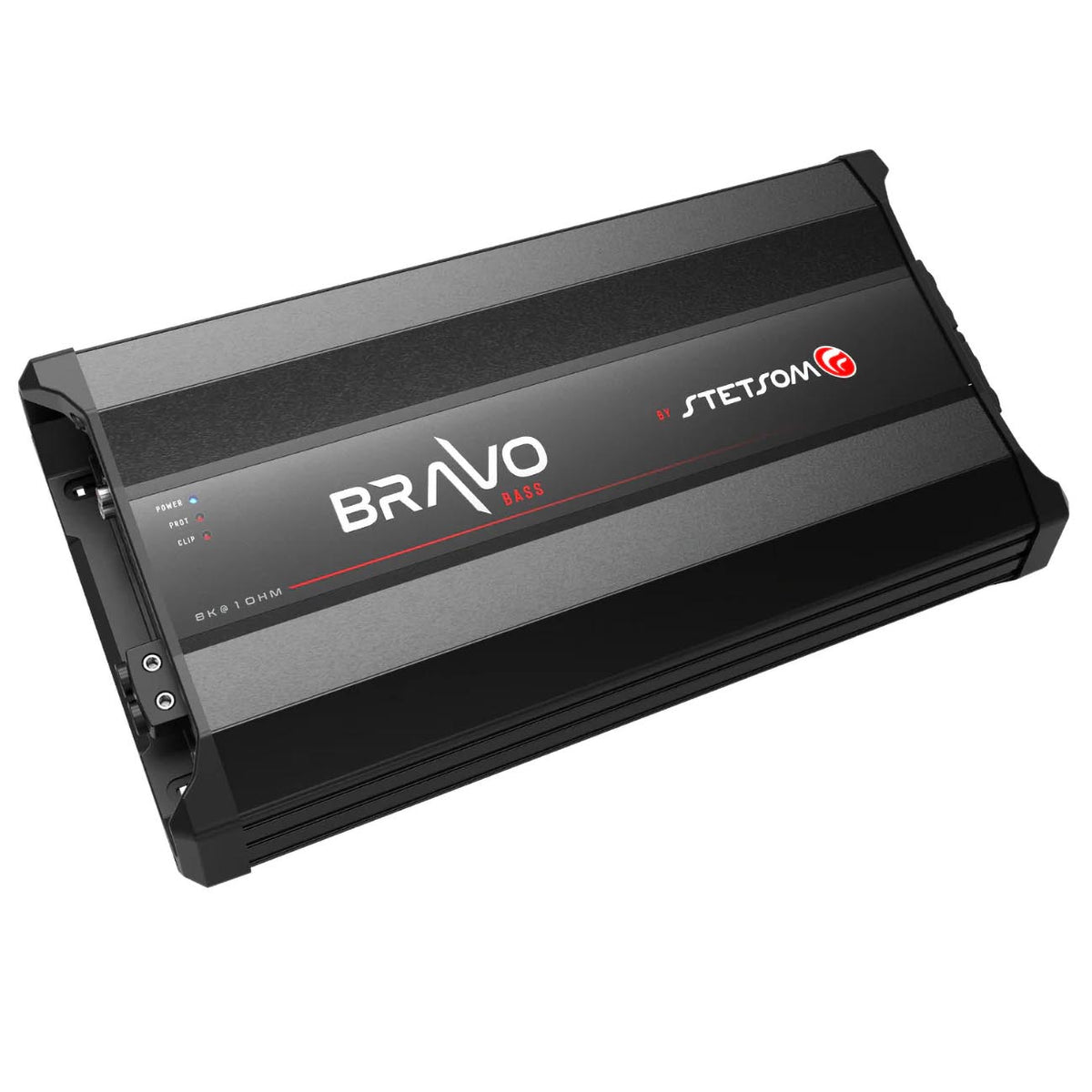

Stetsom Bravo Full Digital Monoblock Amplifier, 8000W RMS @1ohm

Stetsom Bravo Full Digital Monoblock Amplifier, 8000W RMS @1ohm

• Channels: Monoblock (1 Channel)
• RMS Power: 8,000W
• Stable to: 1 Ohm
• Amplifier Class: D
• SKU: BRAVOFULL8K1OHM

Specifications

• 1 x 8000W RMS @ 1 Ohm (12.6V)
• 1 x 4400W RMS @ 2 Ohm (12.6V)
• (H x W x L): 3.14″ x 9.11″ x 16.49″
• Recommended Fuse: 400A (Not Included)
• 1 x 8600W RMS @ 1 Ohm (14.4V)
• 1 x 5100W RMS @ 2 Ohm (14.4V)
• Class D
• 1 Ohm Stable
• Supply Voltage: 9V ~ 17V DC
• Minimum input sensitivity: 200mV
• Signal to noise ratio: >90dB
• Frequency response (-3dB): 10Hz ~ 12KHz
• Crossover low pass: 90Hz ~ 12KHz
• Crossover high pass: 10Hz ~ 90Hz
• Bass boost: 0dB ~ +10dB (Freq: 30Hz ~ 70Hz)
• Input Impedance: 14K Ohms
• Musical Consumption: 370A
• BASS Consumption: 740A
• RCA Inputs
• LED Indicators: Power/Protect/Clipping
• Smart protection system: Short, Temperature, Over/Under Voltage
