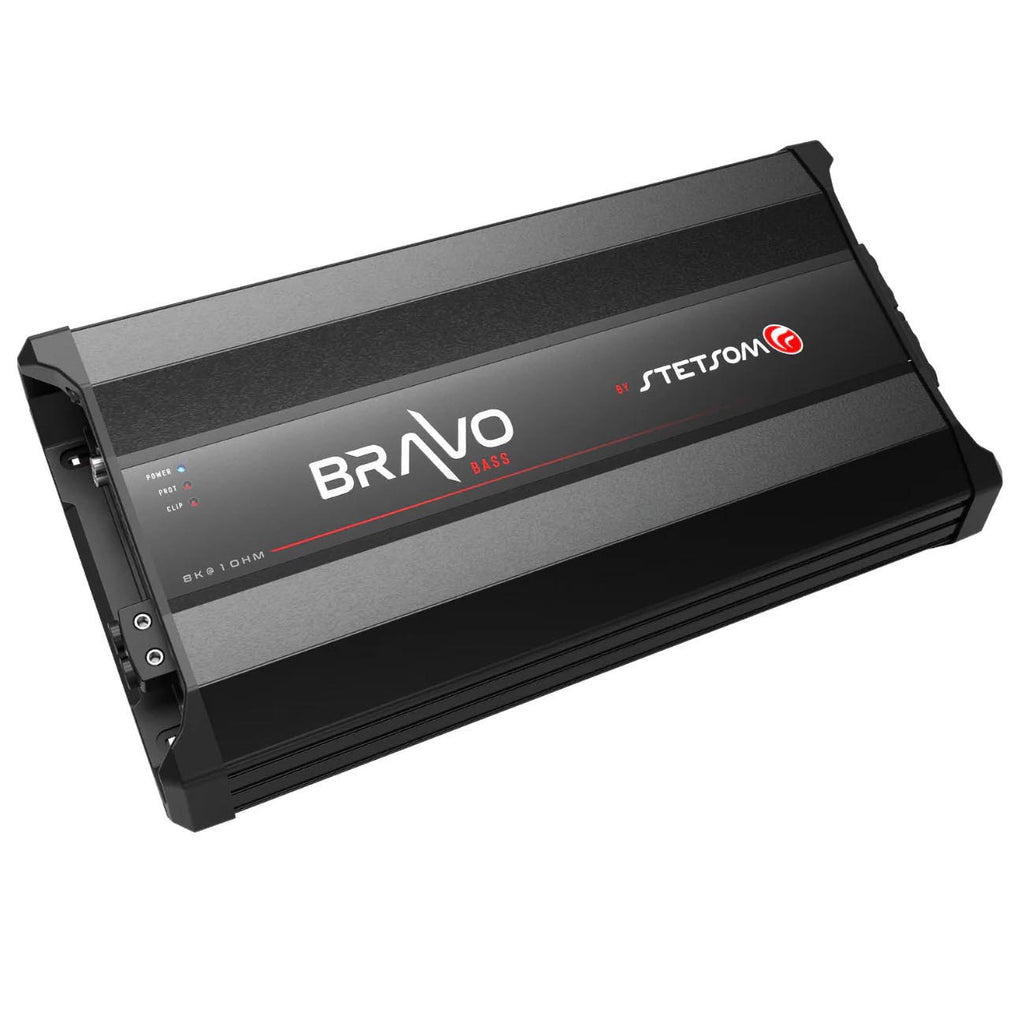

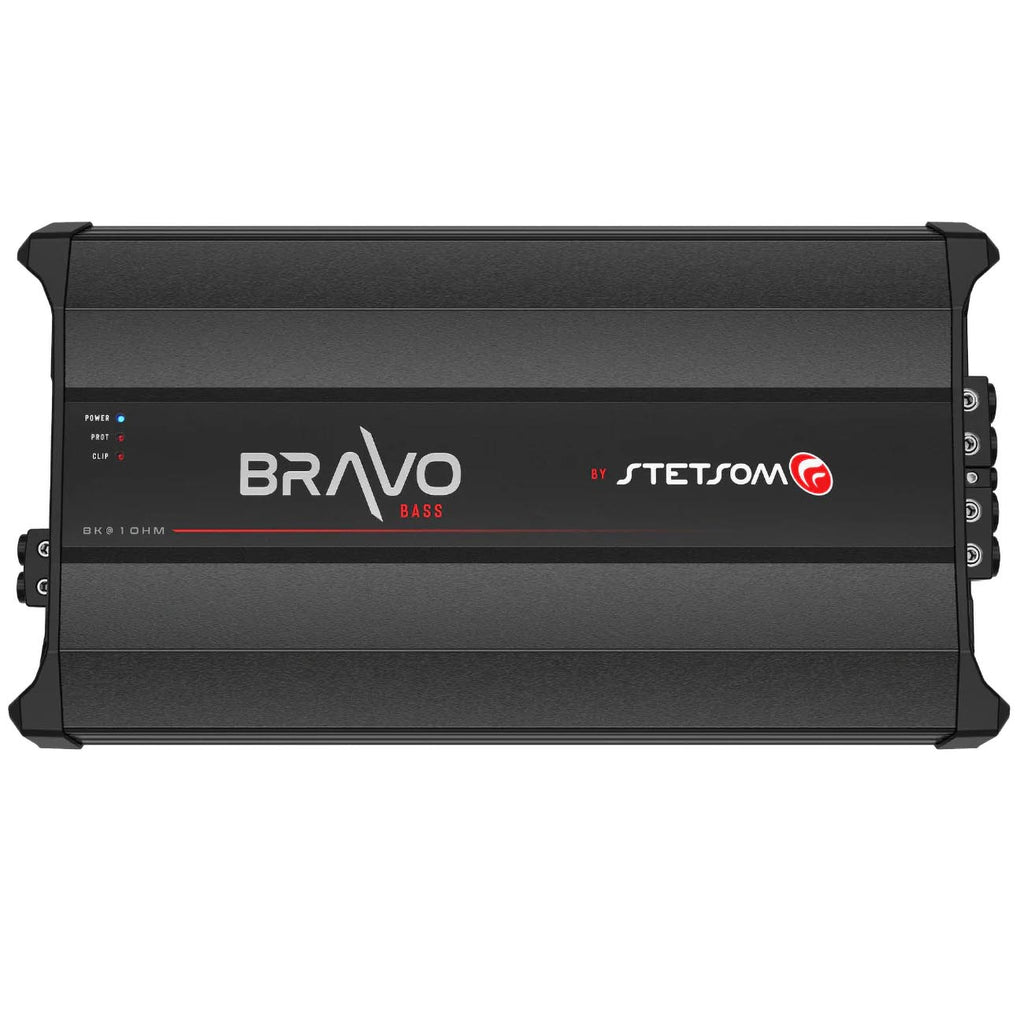

Stetsom Bravo Bass Digital Monoblock Amplifier, 8200W RMS @ 1ohm

Stetsom Bravo Bass Digital Monoblock Amplifier, 8200W RMS @ 1ohm

• Channels: Monoblock (1 Channel)
• RMS Power: 8,200W
• Stable to: 1 Ohm
• Amplifier Class: D
• SKU: BRAVOBASS8K1OHM

Specifications

• 1 x 8200W RMS @ 1 Ohm (14.4V)
• 1 x 4900W RMS @ 2 Ohm (14.4V)
• (H x W x L): 3.14″ x 9.11″ x 16.49″
• Recommended Fuse: 400A (Not Included)
• Class D
• 1 Ohm Stable
• Supply Voltage: 9V ~ 17V DC
• Frequency Response (-3dB): 5Hz ~ 600Hz (FLAT ON)
• Frequency Response (-3dB): 5Hz ~ 250Hz (FLAT OFF)
• Crossover Low Pass: 30Hz ~ 250Hz
• Crossover Subsonic Filter: 5Hz ~ 40Hz
• Bass boost: 0 ~ +10dB (30Hz ~ 70Hz)
• Signal to Noise: >90 dB
• Input Impedance: 4.8K Ohms
• Musical Consumption: 365A
• BASS Consumption: 730A
• RCA Inputs
• LED Indicators: Power/Protect/Clipping
• Smart protection system: Short, Temperature, Over/Under Voltage
