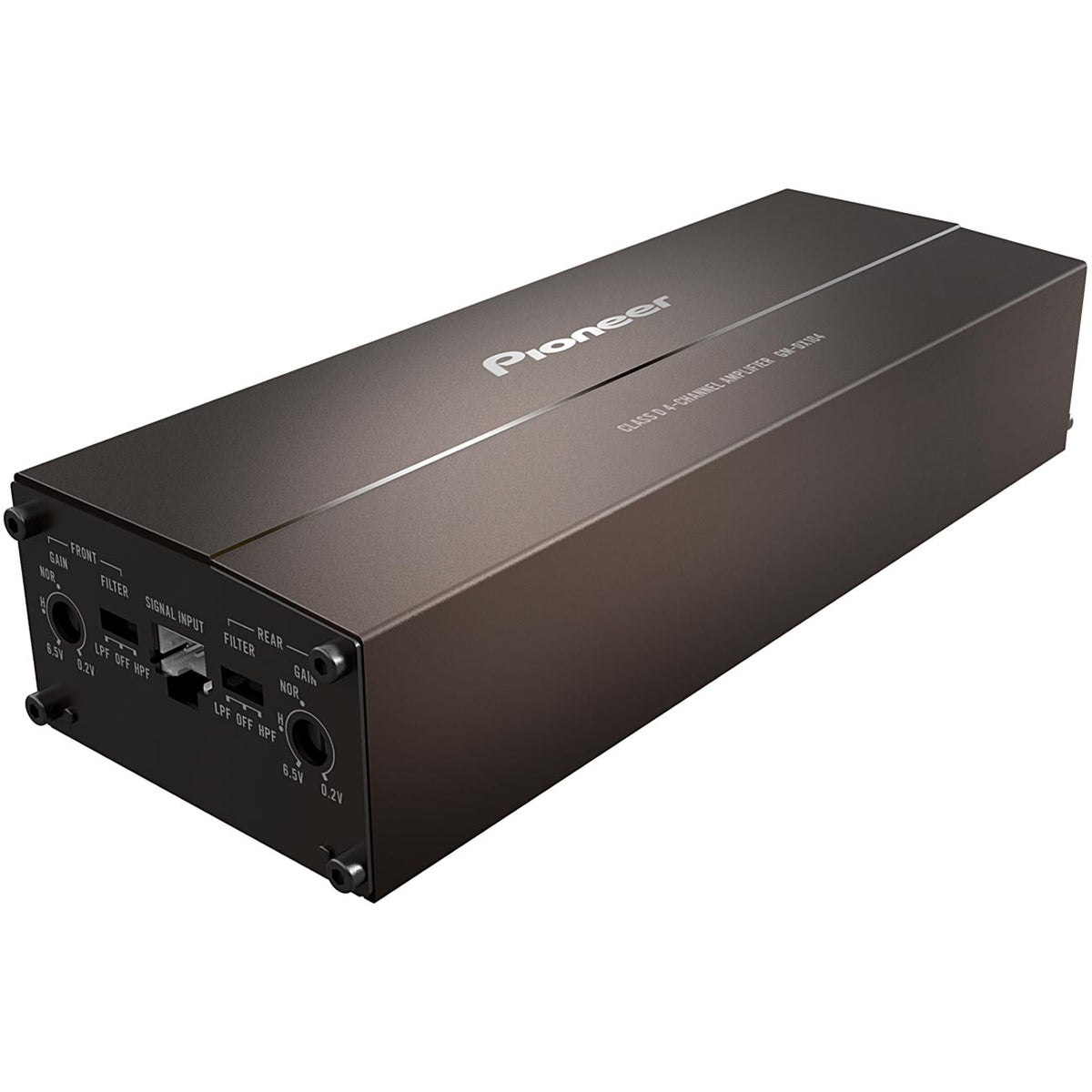

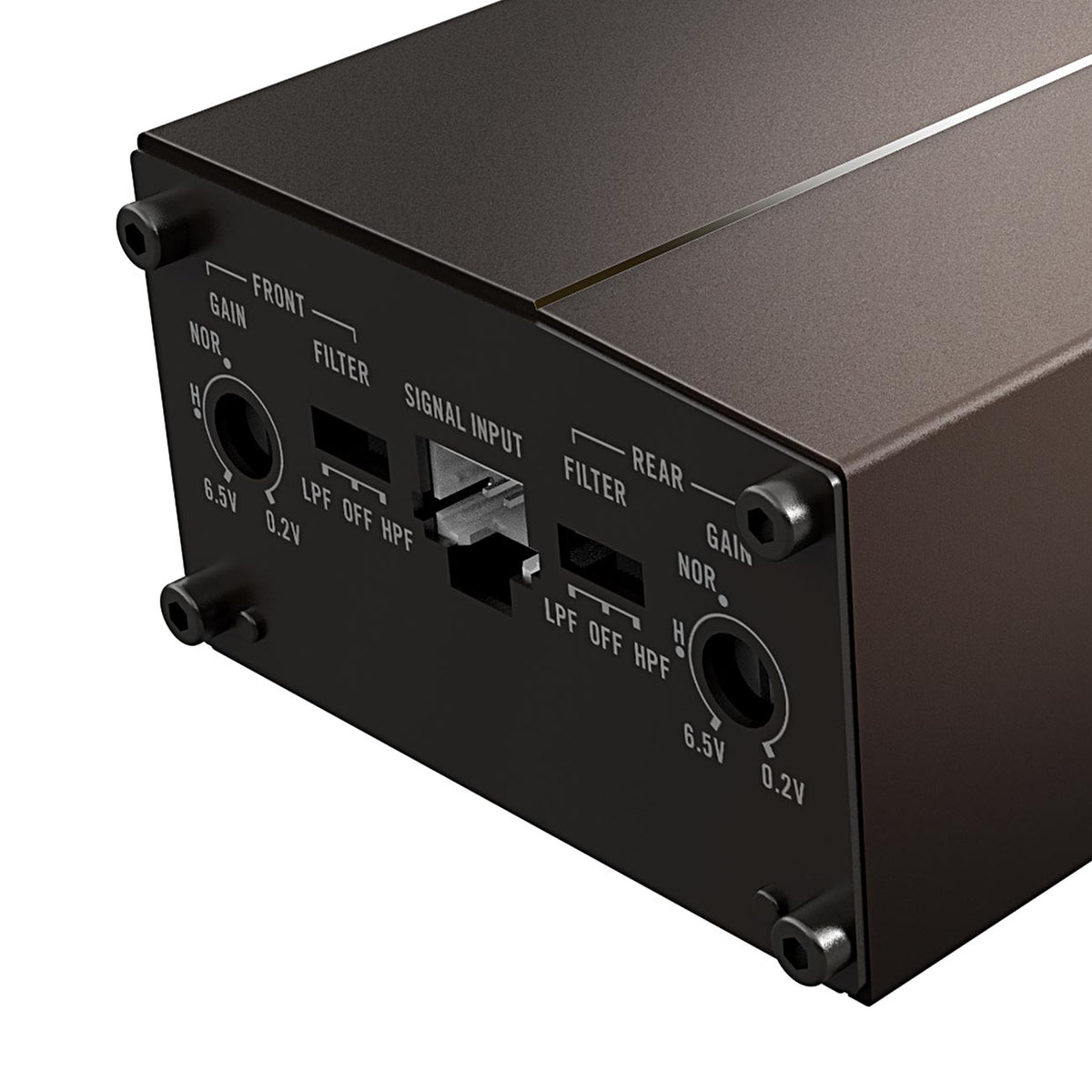

Pioneer 4 Channel Amplifier, 400W Max
$200.00
Skip to product information
Pioneer 4 Channel Amplifier, 400W Max
$200.00
Pioneer 4 Channel Amplifier, 400W Max
- Channels: 4 Channel
- Peak/Max Power: 400W
- Stable to: 2 Ohm
- Amplifier Class: FD
- SKU: PIOGMDX104
Specifications
- 4 x 45 Watts RMS @ 4 ohms (1%THD)
- 4 x 100 Watts MAX @ 4 ohms (1%THD)
- 4 x 100 Watts (4 Ohm)
- 2 x 200 Watts (4 Ohm Bridged)
- (W x H x L) 2.6″ x 1.5″ x 9.3″
- Continuous Power
- 4 x 45W RMS @ 4 Ohms
- 4 x 45W RMS @ 2 Ohms
- 2 x 90W RMS @ 4 Ohms (Bridged)
- Average Current Consumption (Amps X #Ch)
- 1.6 A (4 Ohms x 4ch)
- 1.6 A (2 Ohms x 4ch)
- 1.6 A (4 Ohms x 2ch Bridged)
- Fuse Rating: 15A
- Class FD
- Impedance: 2 ohm to 8 ohm allowable
- Hi-Res Audio Certified
- Small Size – Big Power
- High Pass and Low-Pass Filters
- Gold-plated RCA Terminals
- Frequency Response Channel: 10Hz to 40kHz (+0dB,-3dB)
