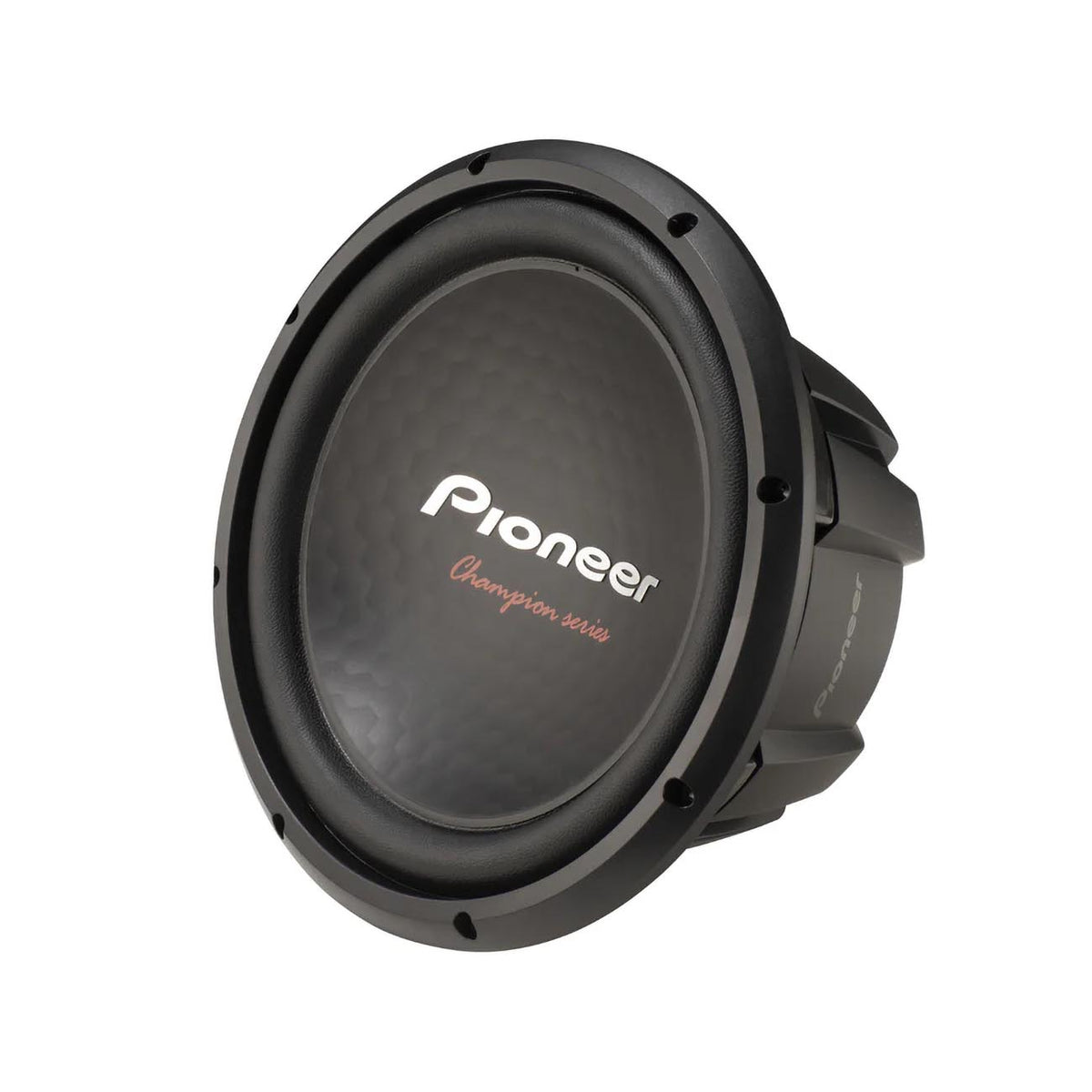

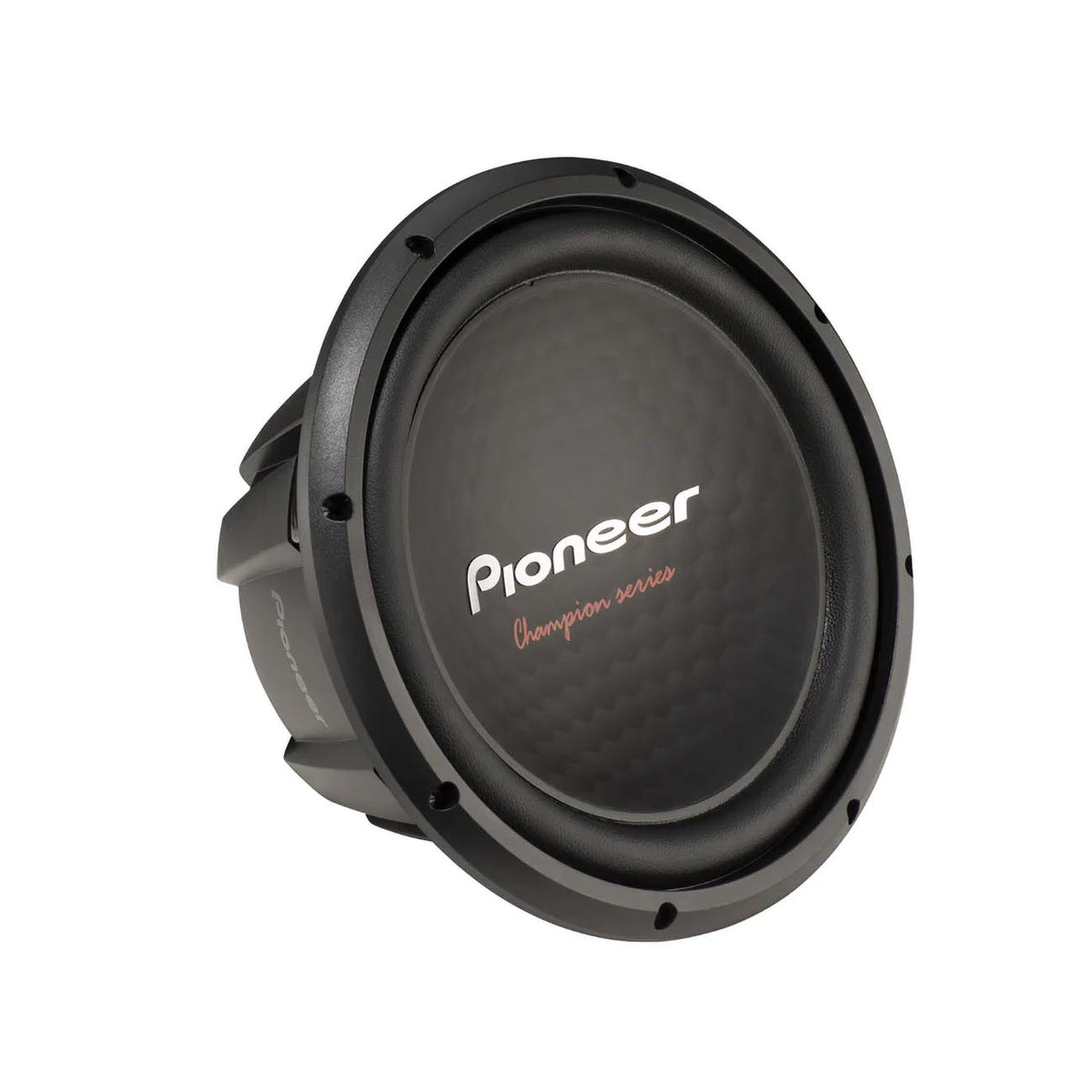

Pioneer 12" Woofer, 1600W Max / 500W RMS, Dual 4 Ohm Voice Coils
$140.00
Skip to product information
Pioneer 12" Woofer, 1600W Max / 500W RMS, Dual 4 Ohm Voice Coils
$140.00
Pioneer 12" Woofer, 1600W Max / 500W RMS, Dual 4 Ohm Voice Coils
- Type: Woofer
- Size: 12"
- RMS Power: 500W
- Peak/Max Power: 1,600W
- Impedance: 4 Ohm
- SKU: PIOTSA301D4
Specifications
- 1600 Watts Max. Power / 500 Watts Nominal Power
- 12″ 2-piece Honeycomb IMPP™ Cone Structure
- Dual layer fiber reinforced elastic polymer surround
- Frequency range: 20 Hz – 1.6 kHz
- Speaker Impedance: 2x 4 ohms
- Speaker Efficiency: 92 dB (1W/1M)
- Recommended Box volume : 1.5cu.ft (vented)
- CarSoundFit
- Mounting depth: 6-1/8”
- Cut Out dimensions: 11.125″, 28.26 cm
- Equivalent Compliance (VAS): 37.7 Liters, 1.33 Cul Ft.
- Free Air ResoNAnce (Fs): 38
- Linear Excursion (Xmax): 11.3 mm, 7/16″
- Port Diameter: 3″, 7.62 cm
- Port Length: 6.5″, 16.51 cm
- Recommended Ported Box Internal volume: 42.5 Liters, 1.5 Cu. Ft.
- Recommended Sealed Enclosure Volume: 1.25 Cu Ft, 35.4 Liters
- Total Speaker “Q” (Qts): 0.73
- Basket Material: Metal
- Center Cap Material: Polypropylene
- Cone Material: IMPP – Composite
- Damper: Poly cotton
- Drive Cone Material: Cellulose Fiber
