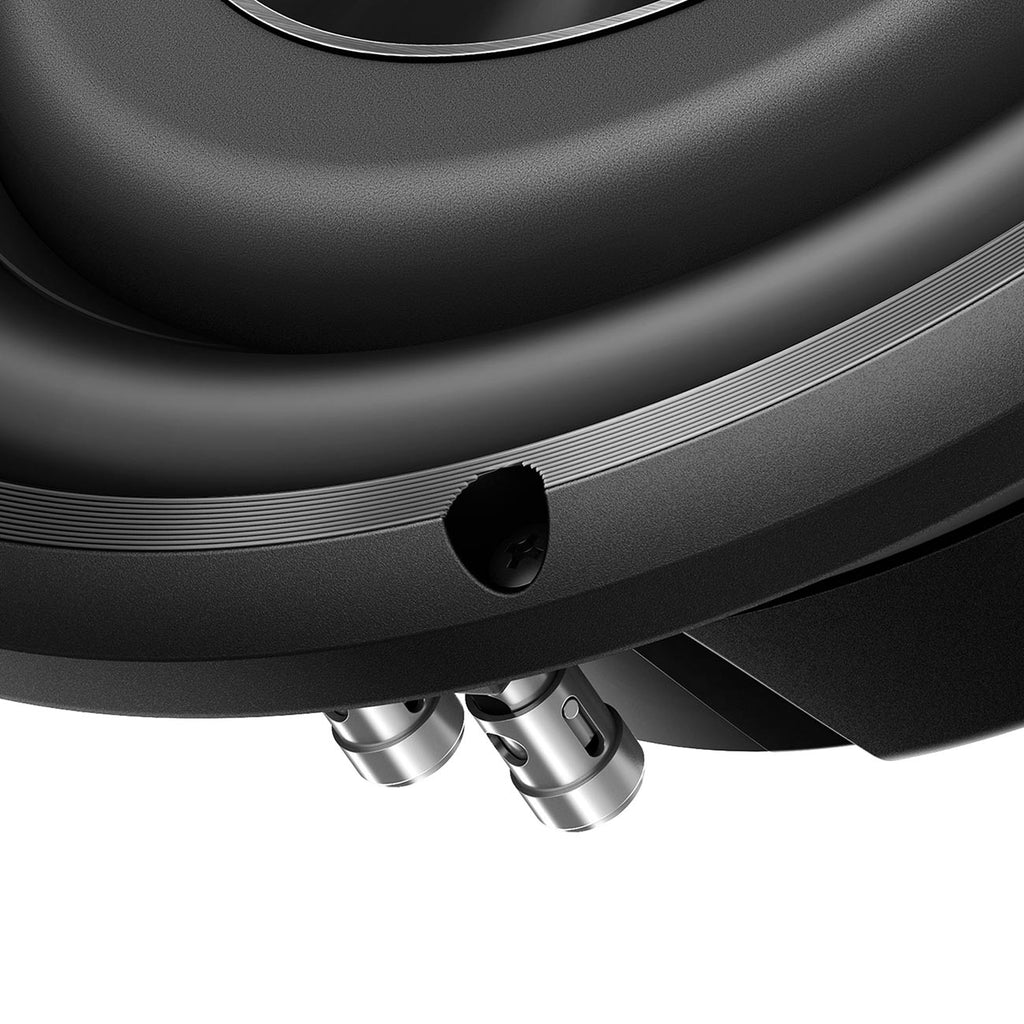

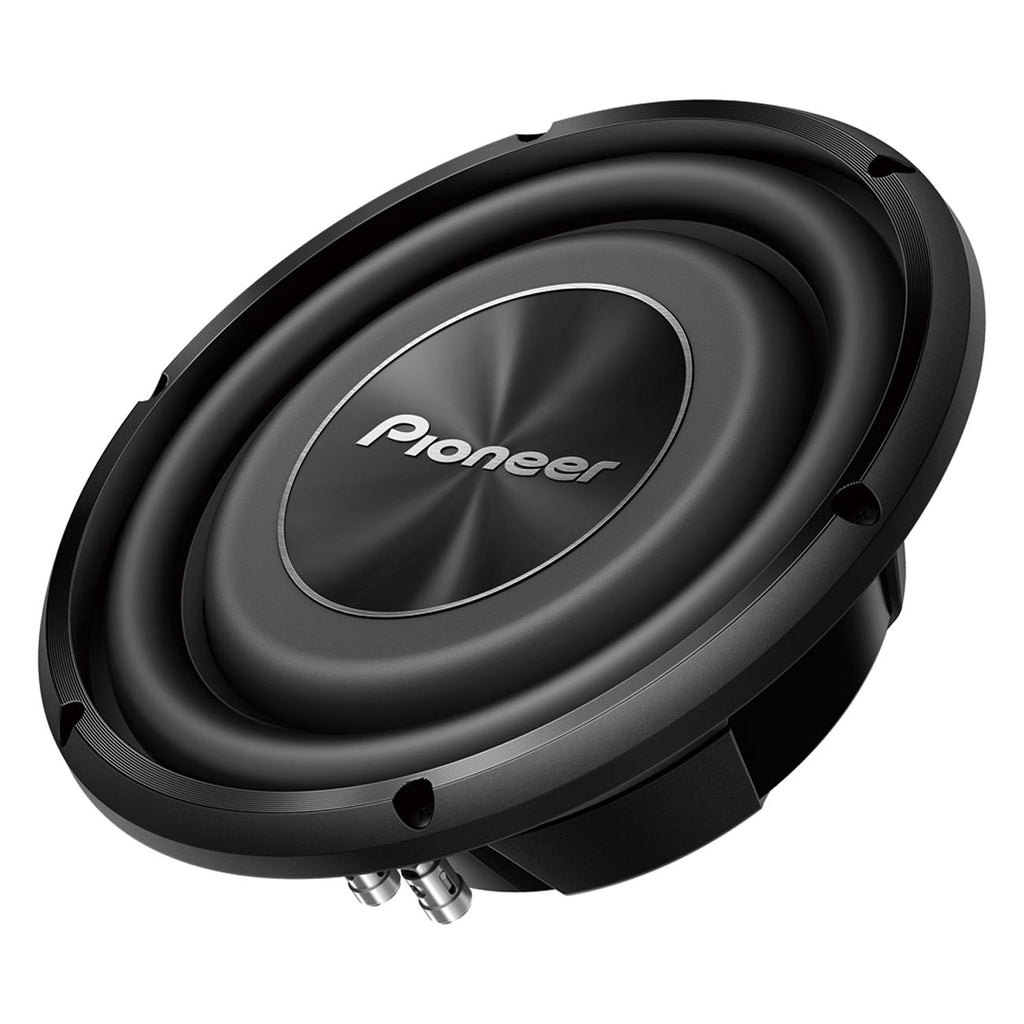

Pioneer 10" Shallow Mount Woofer, 1200W Max / 300W RMS, Single 4 Ohm Voice Coil
$170.00
Skip to product information
Pioneer 10" Shallow Mount Woofer, 1200W Max / 300W RMS, Single 4 Ohm Voice Coil
$170.00
Pioneer 10" Shallow Mount Woofer, 1200W Max / 300W RMS, Single 4 Ohm Voice Coil
- Type: Woofer
- Size: 10"
- RMS Power: 300W
- Peak/Max Power: 1,200W
- Impedance: 4 Ohm
- SKU: PIOTSA2500LS4
Specifications
- 1200 Watts Max. Power / 300 Watts Nominal Power
- 10″ Glass-fiber & Mica reinforced IMPP™ Cone
- Rubber Surround & Aramid-fiber dual-spider design
- Frequency range: 20 Hz – 900 Hz
- Speaker Impedance: 4 ohms
- Speaker Efficiency: 85 dB (1W/1M)
- Recommended Box volume : 0.6cu.ft. (sealed)
- CarSoundFit
- Mounting depth: 3-3/8”
- Cut Out dimensions: 9″, 22.86cm
- Equivalent Compliance (VAS): 17.9 Liters, 0.63 Cu. Ft
- Free Air ResoNAnce (Fs): 38
- Linear Excursion (Xmax): 8.3, 0.33″
- Port Diameter: 7.62cm, 3″
- Port Length: 7-1/2″, 19.05cm
- Recommended Ported Box Internal volume: 17 Liters, 0.6 Cu. Ft.
- Recommended Sealed Enclosure Volume: 0.6 Cu Ft, 17 Liters
- Subwoofer Grille: UD-10GL Sold Separately
- Total Speaker “Q” (Qts): 0.83
- Basket Material: Metal
- Center Cap Material: ABS
- Cone Material: Carbon and Mica reinforced Injected Molded Polypropylene – IMPP
- Custom Fit Basket: Yes
