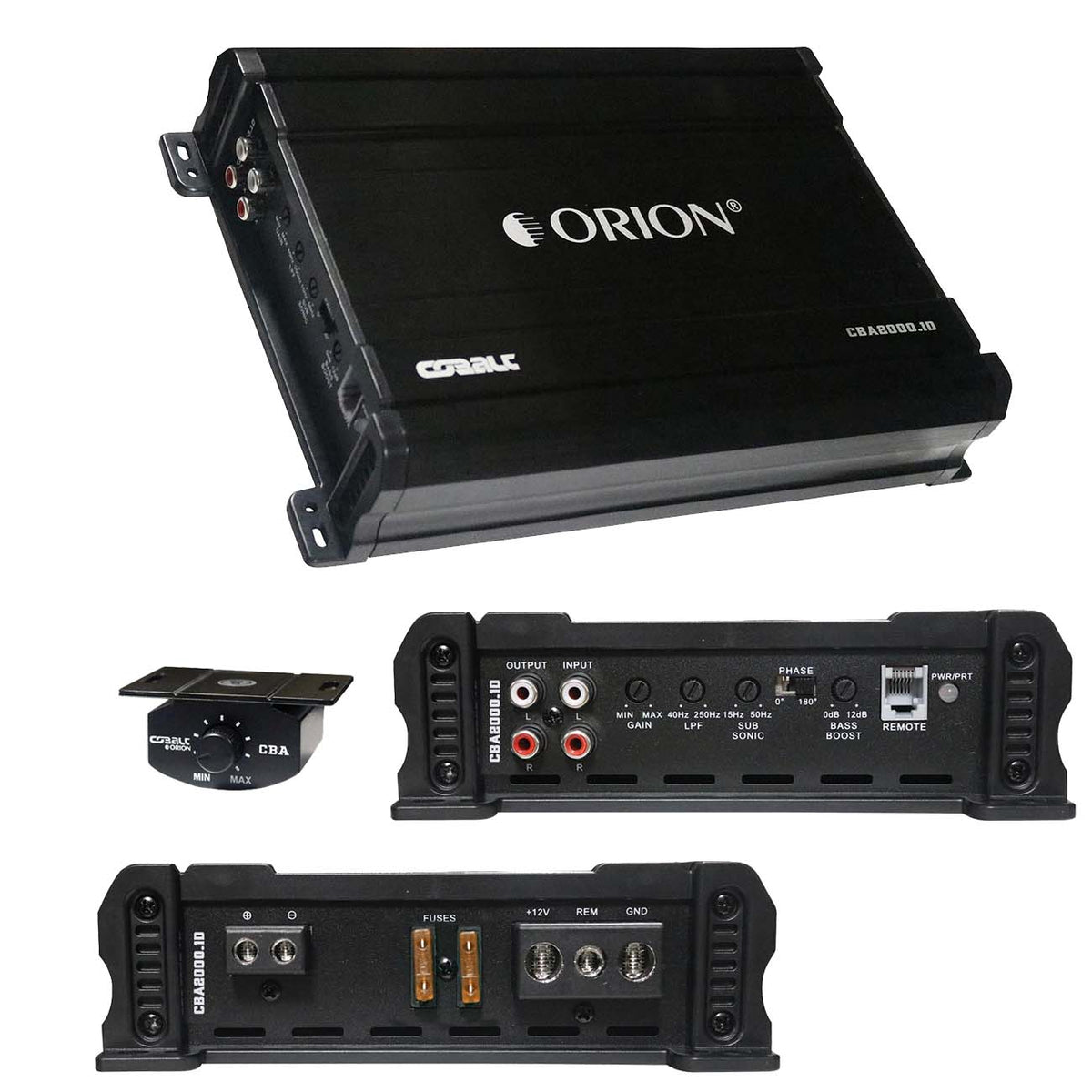

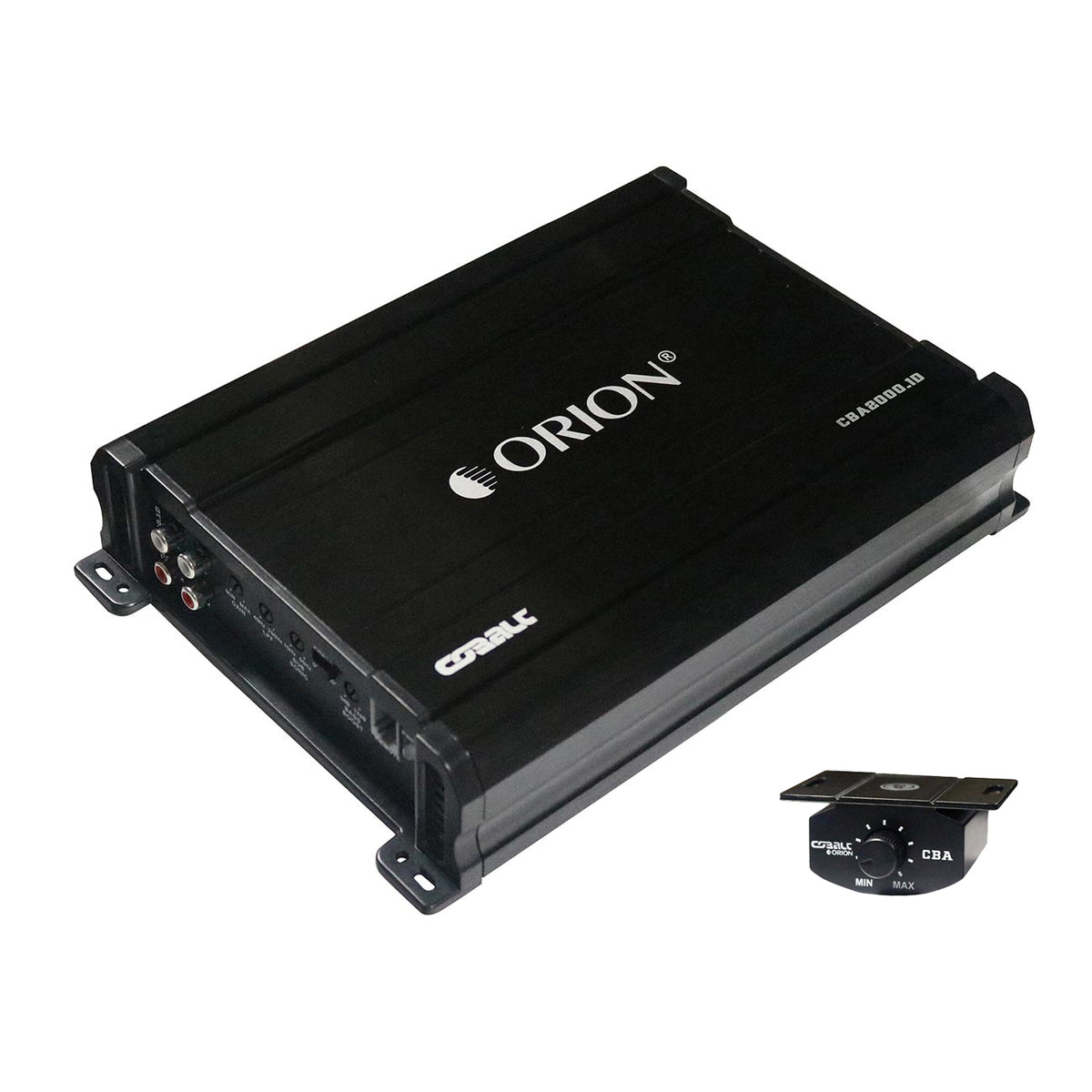

Orion Cobalt Series Monoblock Amplifier, 2000W MAX
$119.95
Skip to product information
Orion Cobalt Series Monoblock Amplifier, 2000W MAX
$119.95
Orion Cobalt Series Monoblock Amplifier, 2000W MAX
- Channels: Monoblock (1 Channel)
- Peak/Max Power: 2,000W
- Stable to: 1 Ohm
- Amplifier Class: D
- SKU: CBA20001D
Specifications
- 2000 Watts Max
- 1 x 500W RMS @ 1 Ohm
- 1 x 260W RMS @ 2 Ohms
- 1 x 160W RMS @ 4 Ohms
- Class D
- DIM (W x H x L) 7.1″ x 2.2″ x 10″
- Fuses: 2 x 40A (ATC Fuses)
- Class D
- 1 Ohm Stable
- Frequency Response: 10Hz – 250Hz
- Subsonic (15 – 50Hz)
- Low Pass Crossover Continuously variable (40-250Hz)
- Supply Voltage: 10 – 16V
- Input Impedance: 22kOhm
- Signal to Noise Ratio: >90dB
- Phase Shift: 0/180 Degrees
- Bass Boost: 0 – 12dB Variable
- Variable Input Level Control: 0.2V – 6.0V
- Wire Specifications:
- Positive Terminals: 1 x 4 AWG.
- Negative Terminals: 1 x 4 AWG.
