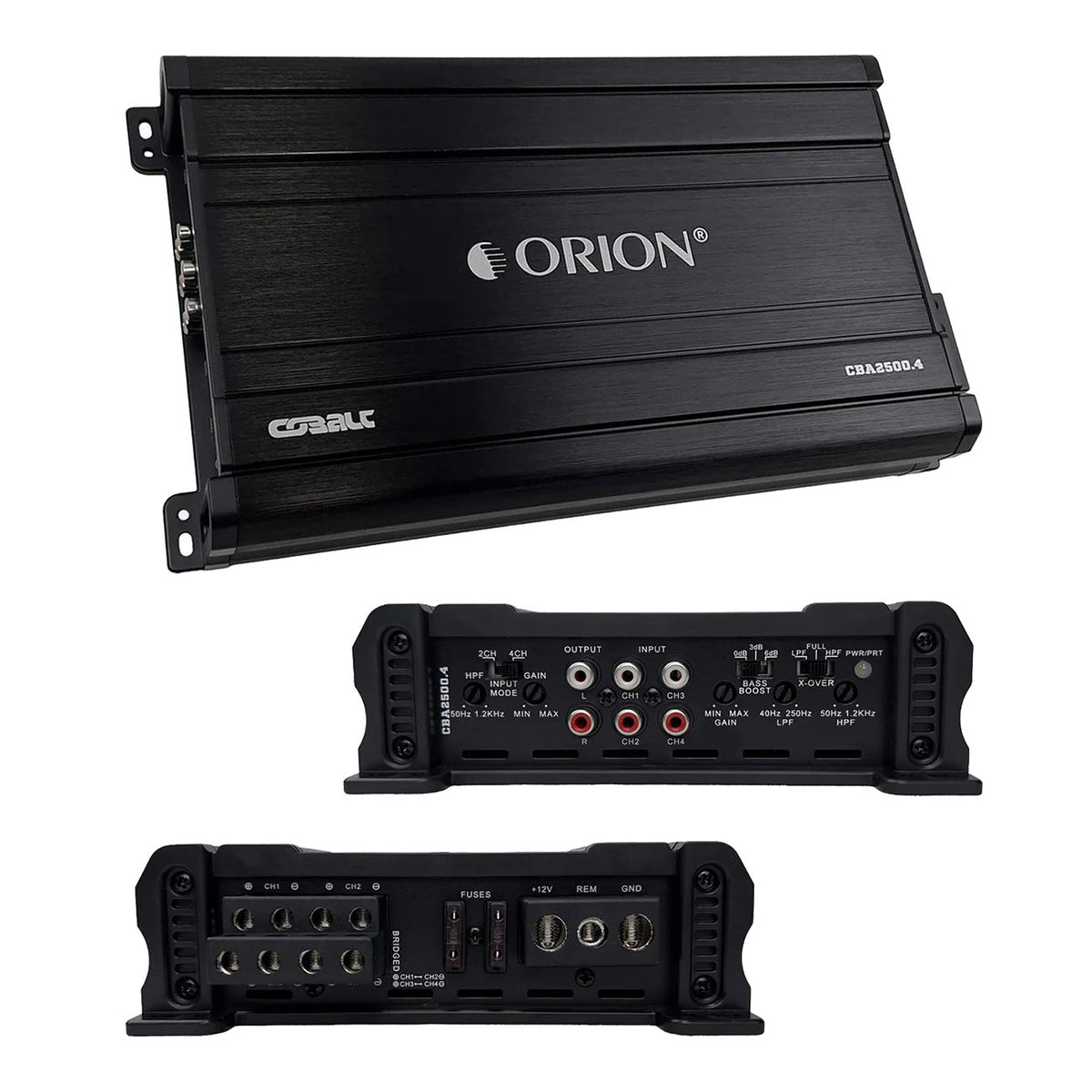

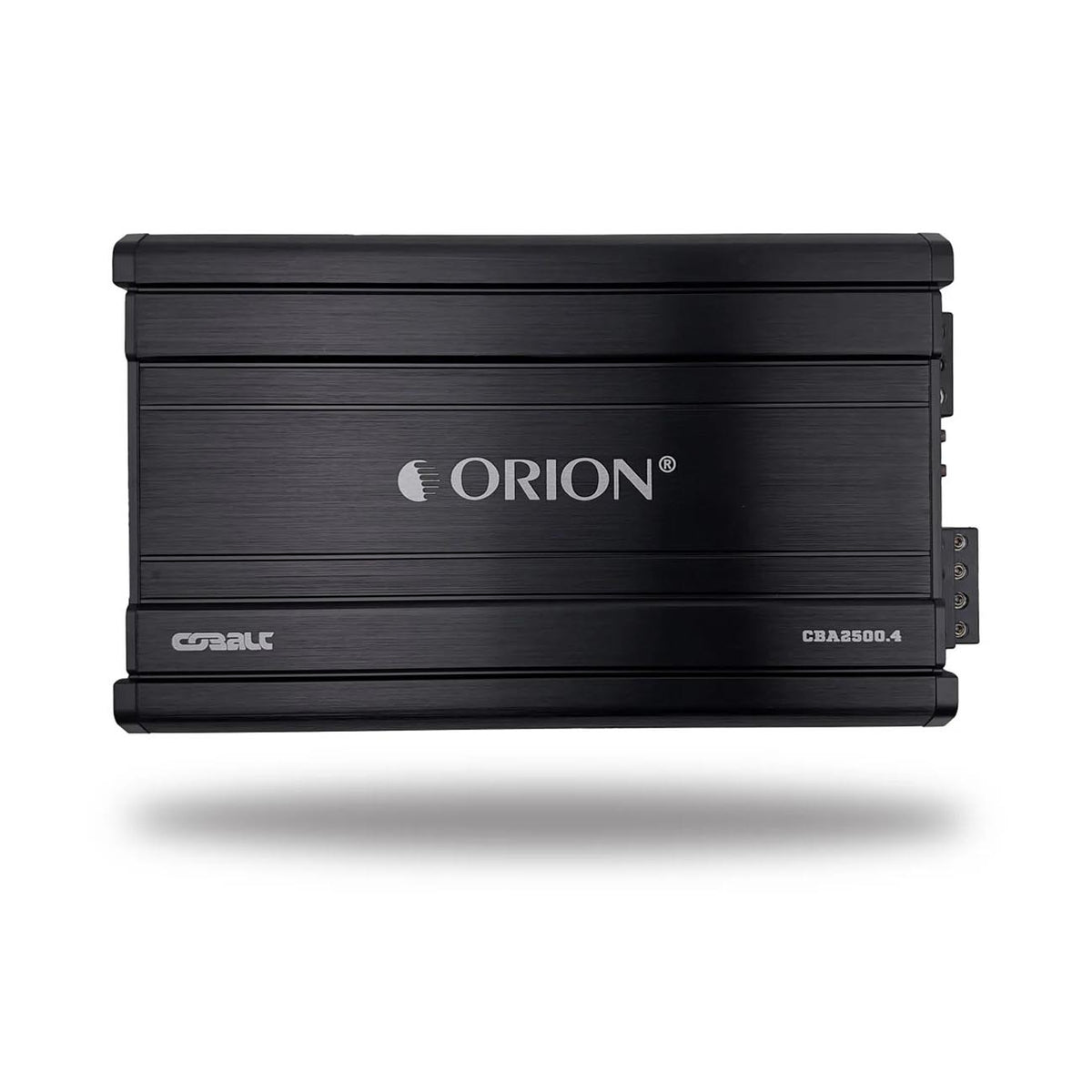

Orion Cobalt Series 4 Channel Amplifier, 2500W MAX
$119.95
Skip to product information
Orion Cobalt Series 4 Channel Amplifier, 2500W MAX
$119.95
Orion Cobalt Series 4 Channel Amplifier, 2500W MAX
- Channels: 4 Channel
- Peak/Max Power: 2,500W
- Stable to: 2 Ohm
- Amplifier Class: A/B
- SKU: CBA25004
Specifications
- 2500 Watts Max
- 4 x 100W RMS @ 2 Ohms
- 4 x 60W RMS @ 4 Ohms
- 2 x 200W RMS @ 4 Ohms Bridge
- Class A/B
- DIM (W x H x L) 7.1″ x 2.2″ x 16.5″
- Fuses: 2 x 40A (ATC Fuses)
- Class A/B
- 2 Ohm Stable
- Frequency Response: 10Hz – 30kHz
- High Pass Crossover Continuously variable (50-1.2kHz)
- Low Pass Crossover Continuously variable (40-250Hz)
- Supply Voltage: 9 – 16V
- Input Impedance: 22kOhm
- Signal to Noise Ratio: >90dB
- Bass Boost: 0/3/6dB Switch
- Variable Input Level Control: 0.2V – 6.0V
- Wire Specifications:
- Positive Terminals: 1 x 4 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
