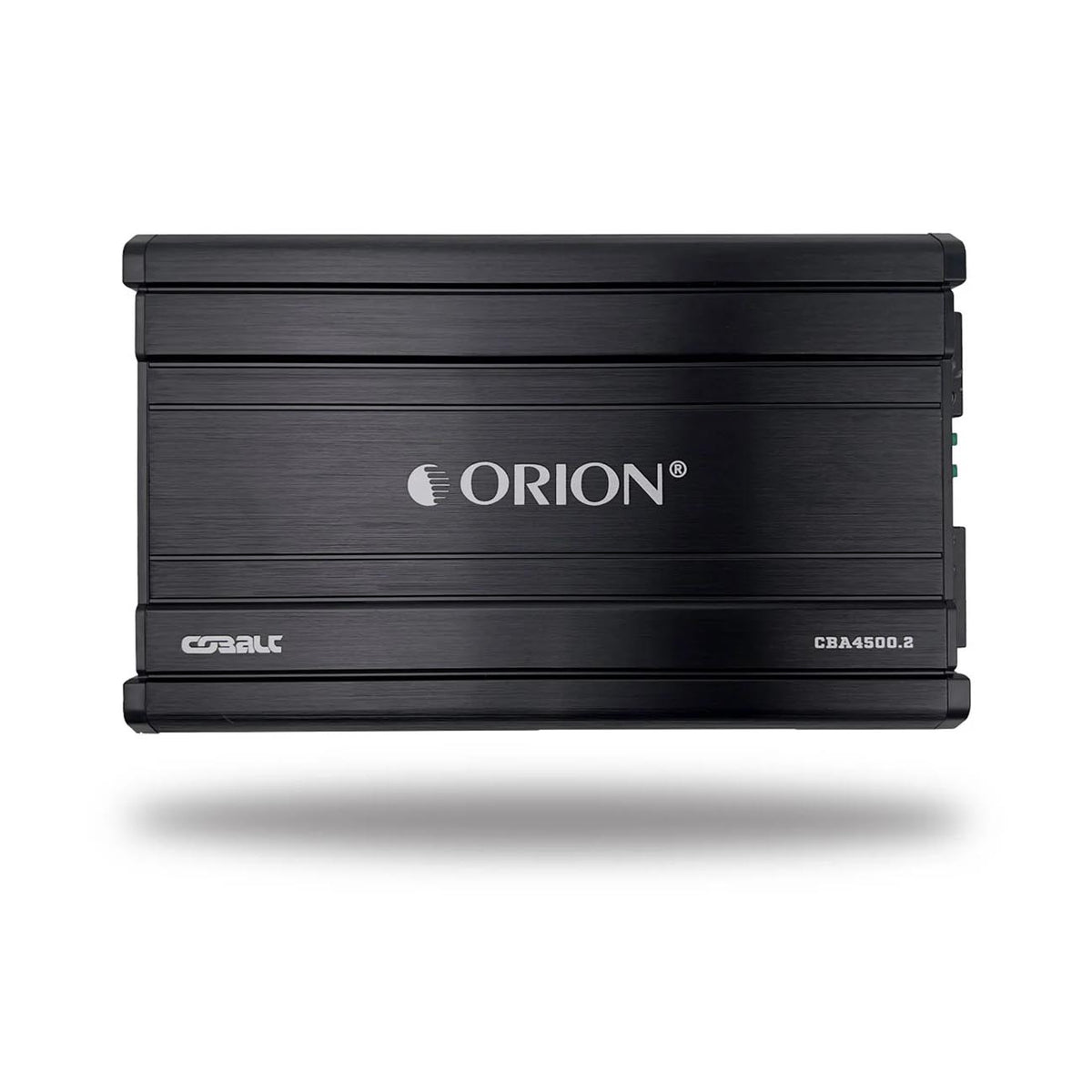

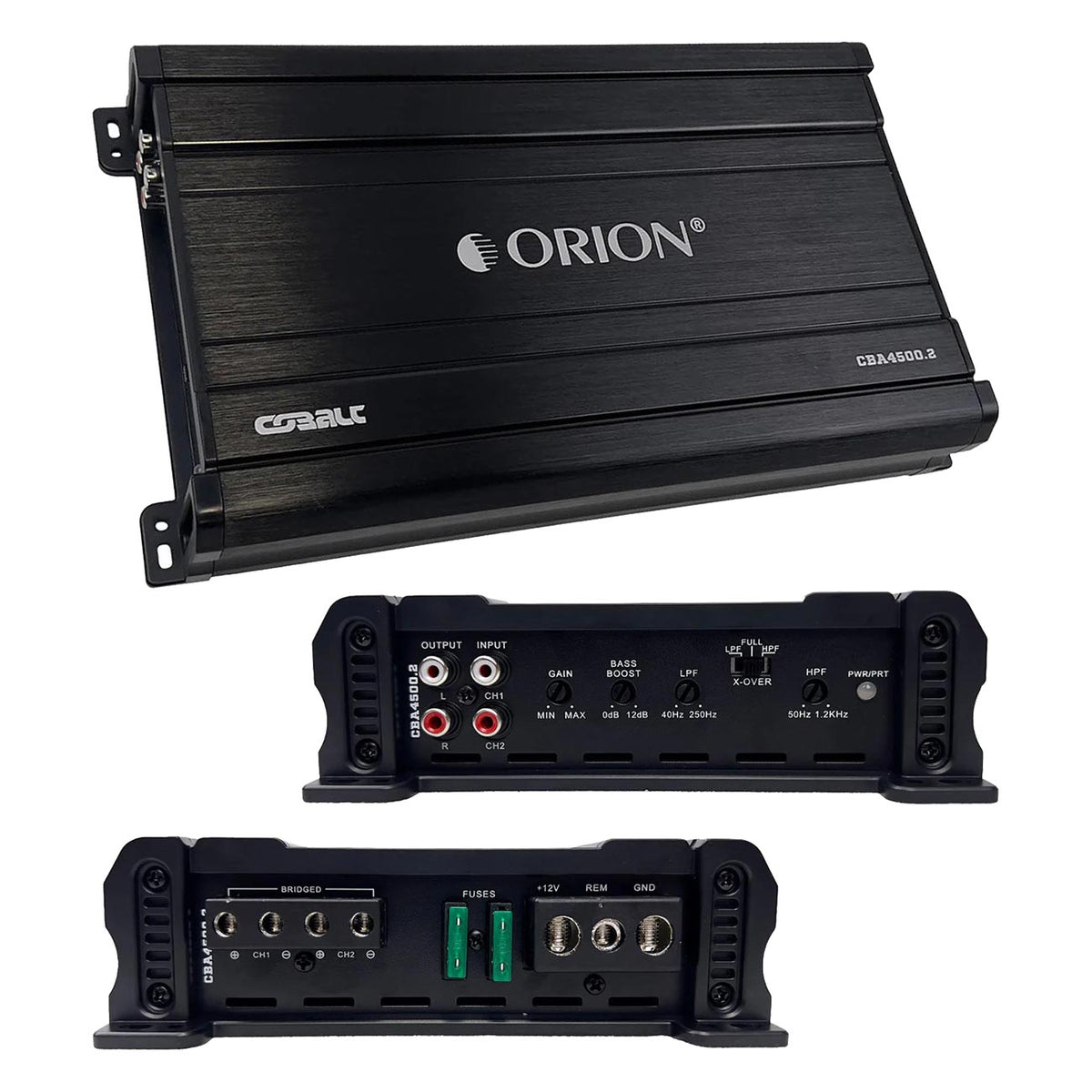

Orion Cobalt 2 Channel Amplifier, 4500W MAX
$139.95
Skip to product information
Orion Cobalt 2 Channel Amplifier, 4500W MAX
$139.95
Orion Cobalt 2 Channel Amplifier, 4500W MAX
- Channels: 2 Channel
- Peak/Max Power: 4,500W
- Stable to: 2 Ohm
- Amplifier Class: A/B
- SKU: CBA45002
Specifications
- Orion Cobalt 4500 Watts MAX 2-Channel Class A/B Amplifier
- 4500 Watts Max
- 2 x 300W RMS @ 2 Ohms
- 2 x 125W RMS @ 4 Ohms
- 1 x 600W RMS @ 4 Ohms Bridge
- Class A/B
- DIM (W X H X L) 7.1″ x 2.2″ x 12.6″
- Fuses: 2 x 30A (ATC Fuses)
- 2 Ohm Stable
- Frequency Response: 10Hz – 30kHz
- High Pass Crossover Continuously variable (50-1.2kHz)
- Low Pass Crossover Continuously variable (40-250Hz)
- Supply Voltage: 9 – 16V
- Input Impedance: 22kOhm
- Signal to Noise Ratio: >90dB
- Bass Boost: 0 – 12dB Variable
- Variable Input Level Control: 0.2V – 6.0V
- Wire Specifications:
- Positive Terminals: 1 x 4 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 10 AWG.
