DS18 Ultra Shallow Mount 6.5" Mid-Range With Grill / Cloth Protection (Sold Each)
$99.95
DS18 Ultra Shallow Mount 6.5" Mid-Range With Grill / Cloth Protection (Sold Each)
- Type: Midrange / Midbass
- Size: 6.5"
- Sold: Each
- Marine / water-resistant rated
- SKU: PROINS64
Specifications
- Ultra-Slim 1.16” mounting depth for shallow installs
- Applications include motorcycle fairings and lids, side-by-sides, custom door panels, and tight-space pods
- Neodymium Motor for fast, accurate response

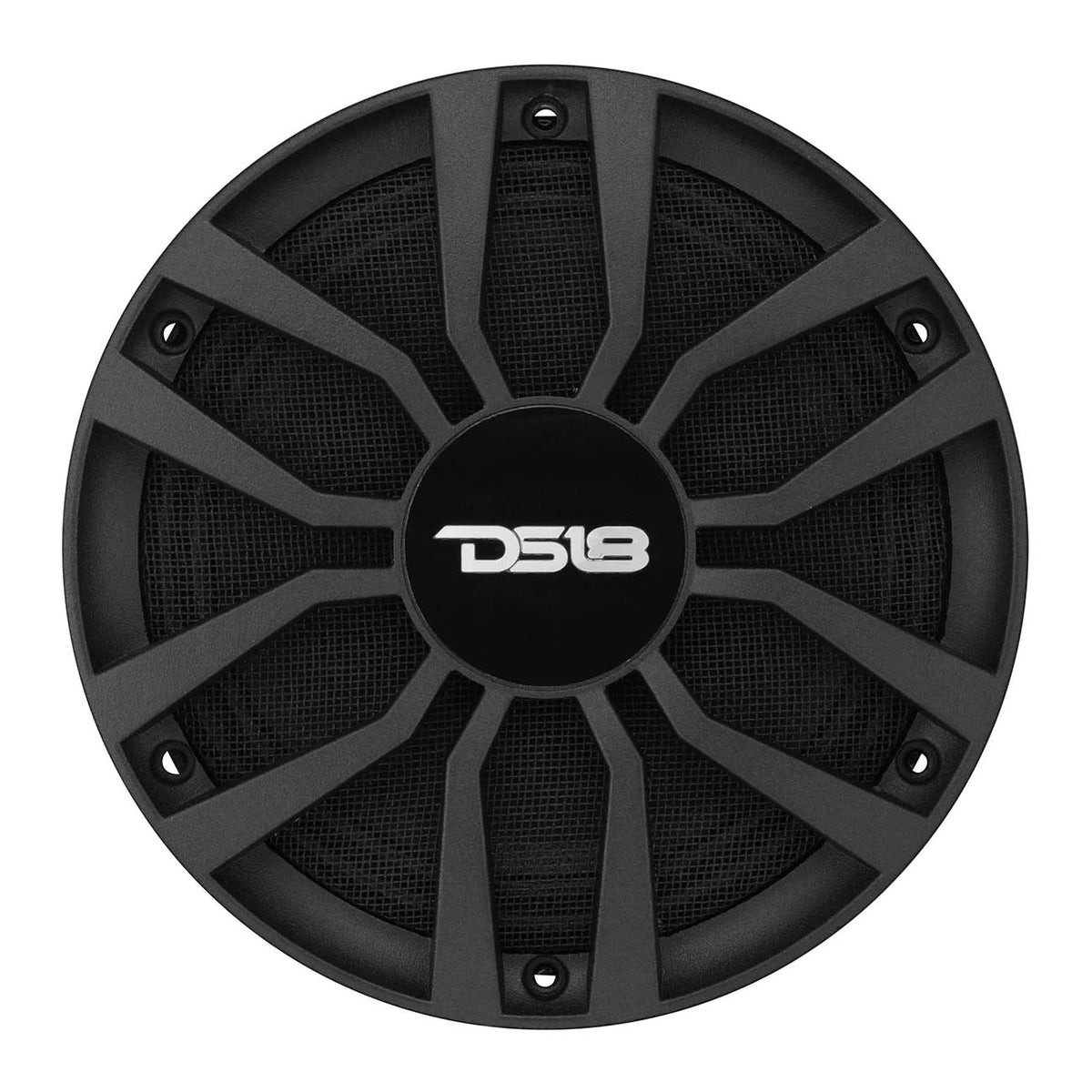

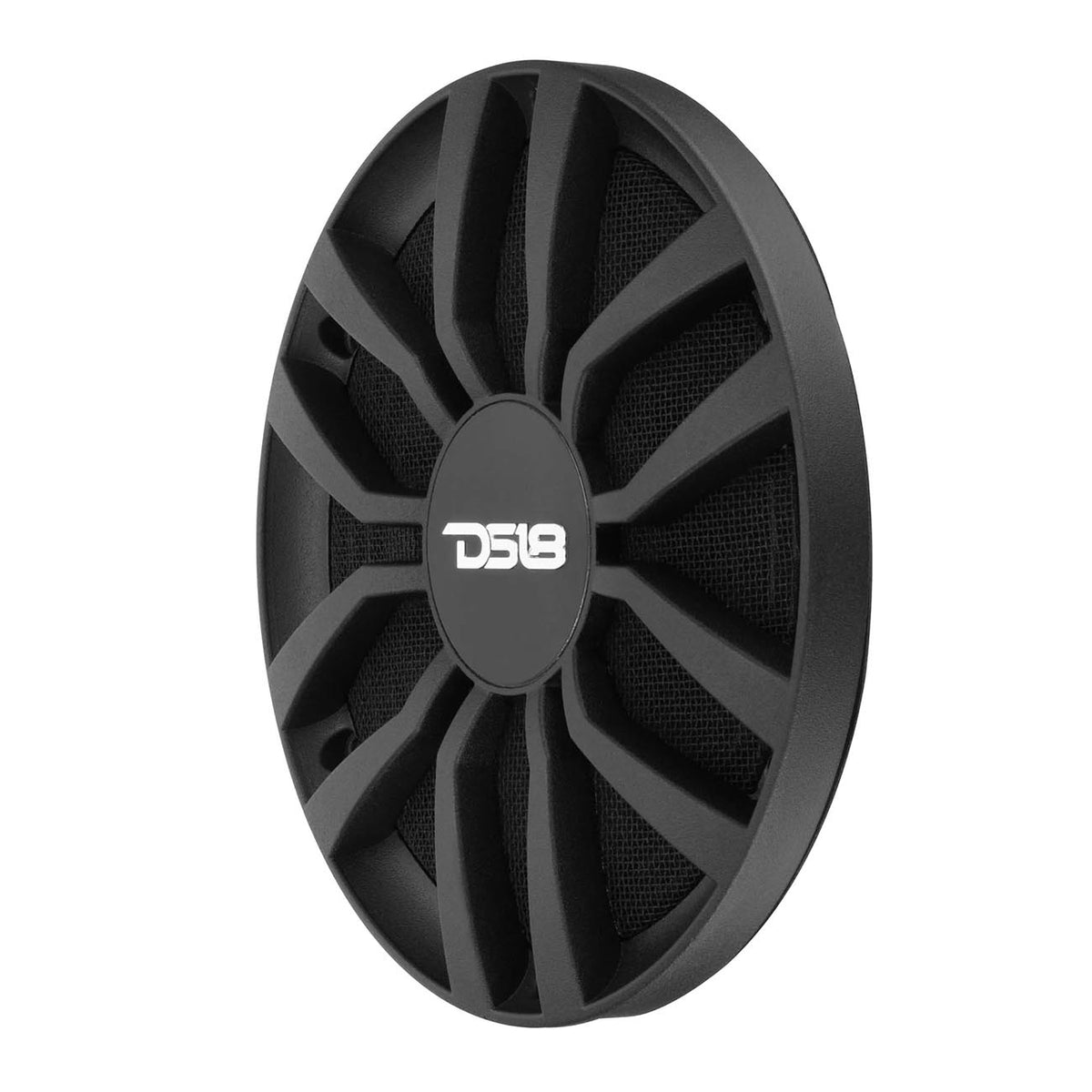

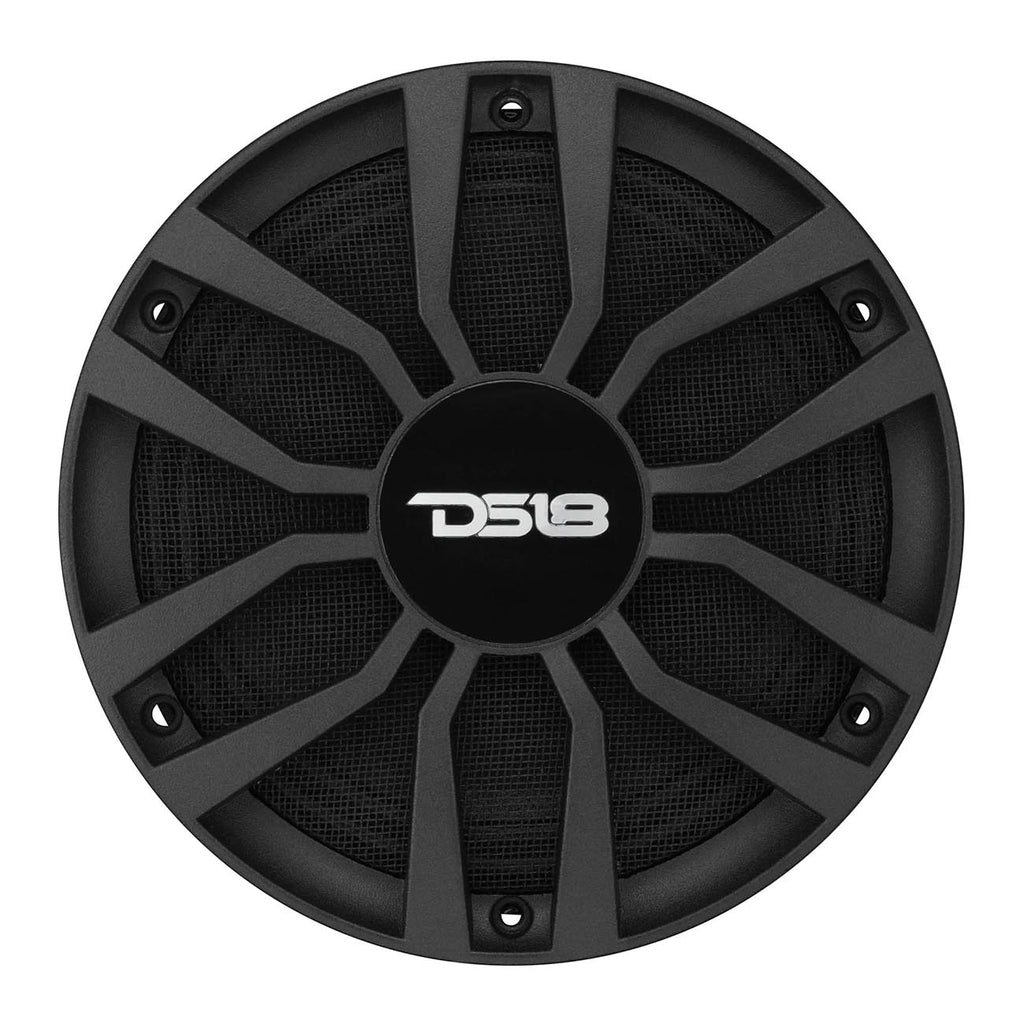

- Unique steel mesh grill with Cloth Dust Blocker
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 120W
- MAX Power Handling: 240W
- Sensitivity (1w/1m): 95dB
- Frequency Response: 80 Hz – 6 KHz
- Recommended HI Pass Crossover: 120Hz
- Voice Coil Diameter: 1.5″ / 38.6mm
- Voice Coil Former Material: KSV
- Winding Material: CCAW
- Cone Material: Paper
- Surround Material: Cloth
- Basket Material: Steel
- Basket Color / Finish: Matte Black
- Magnet Material: Neodymium
- Magnet Weight: 1.89 Oz
- Mount Depth: 1.16″ (29mm)
- Overall Diameter: 6.89″ (175mm)
- Front Mount Baffle Cutout: 5.65″ (144mm)
- Thiele & Small Parameters
