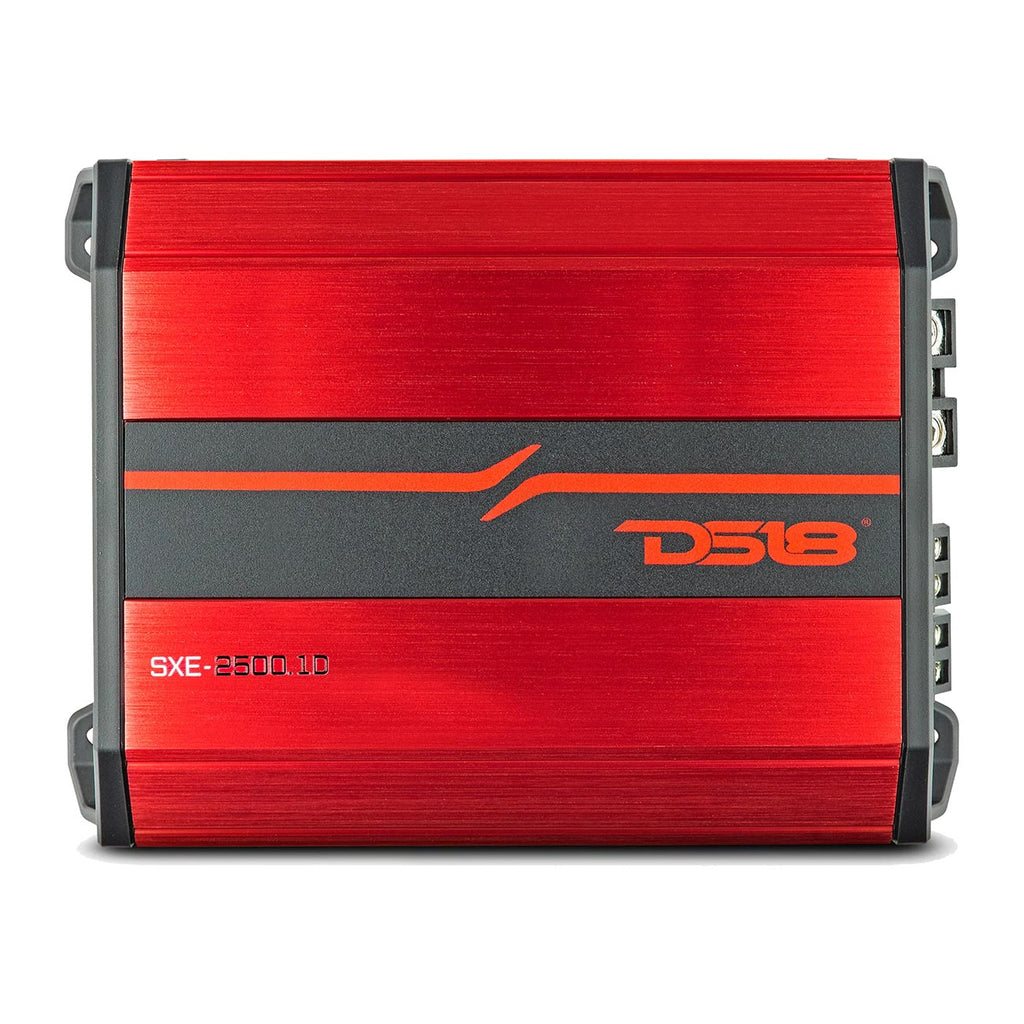

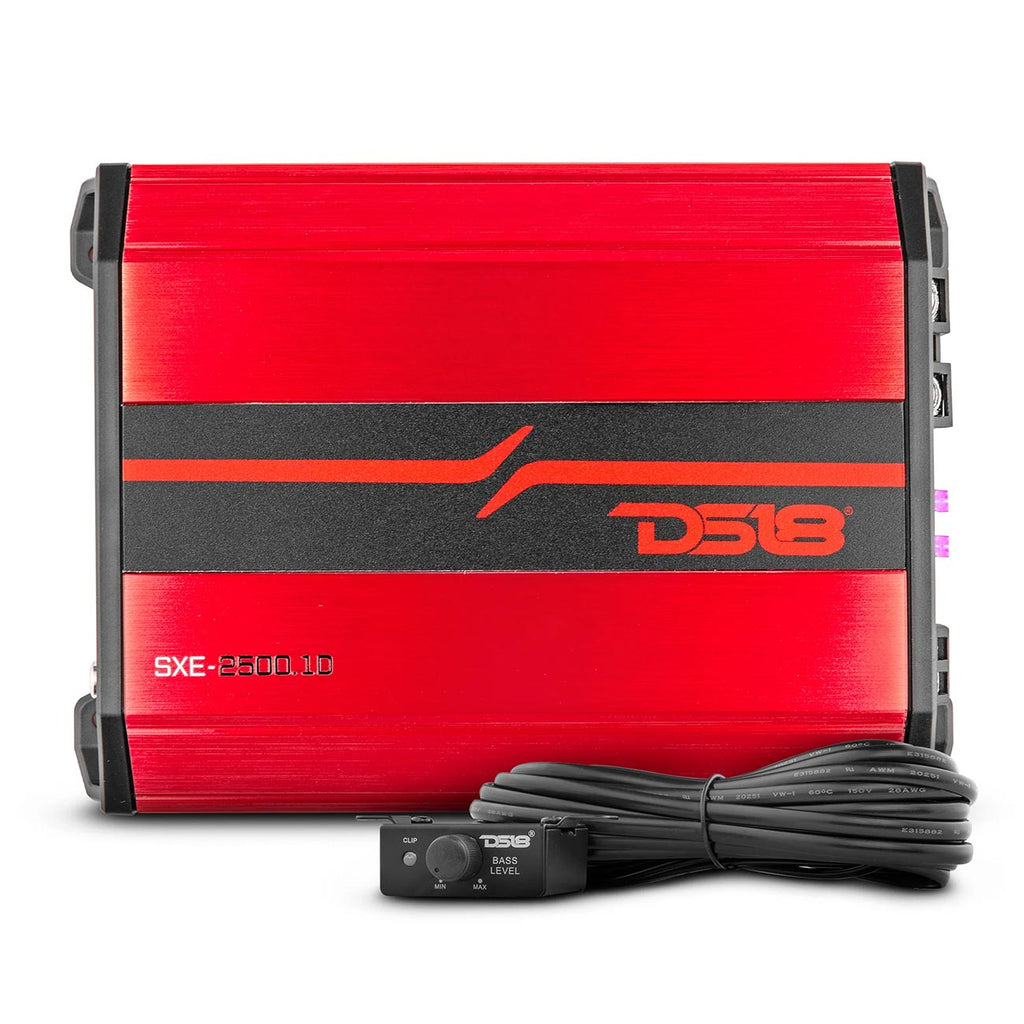

DS18 Monoblock Amplifier, 800W RMS/2500W MAX - Red
$229.95
Skip to product information
DS18 Monoblock Amplifier, 800W RMS/2500W MAX - Red
$229.95
DS18 Monoblock Amplifier, 800W RMS/2500W MAX - Red
- Channels: Monoblock (1 Channel)
- RMS Power: 800W
- Peak/Max Power: 2,500W
- Stable to: 1 Ohm
- Amplifier Class: D
- SKU: SXE25001DRD
Specifications
- 1 x 800 Watts RMS @ 1 Ohm (14.4V)
- 1 x 600 Watts RMS @ 2 Ohms (14.4V)
- 1 x 350 Watts RMS @ 4 Ohms (14.4V)
- (W x H x L) 7.75″ x 3.25″ x 9.75″
- Fuses: 2 x 40A
- 1 Ohm Stable
- Class D
- Red Brushed Aluminum Finish
- Frequency Response: 10 Hz – 500 Hz
- Total Harmonic Distortion (THD): 0.05%
- Low Pass Filter: 50Hz – 250Hz
- Subsonic Filter: 10 Hz – 55 Hz
- Bass Boost: @ 50 Hz (0 – 18 dB)
- Phase Control
- Signal to Noise Ratio: 90dB
- Efficiency @ 4 ohms: 80%
- Damping Factor: 140
- LED Indicator: Power/Protect/Clip
- 3-Way Protection
- Over-Load, DC Output, Short Circuit & Voltage Protection
- Clipping Protection
