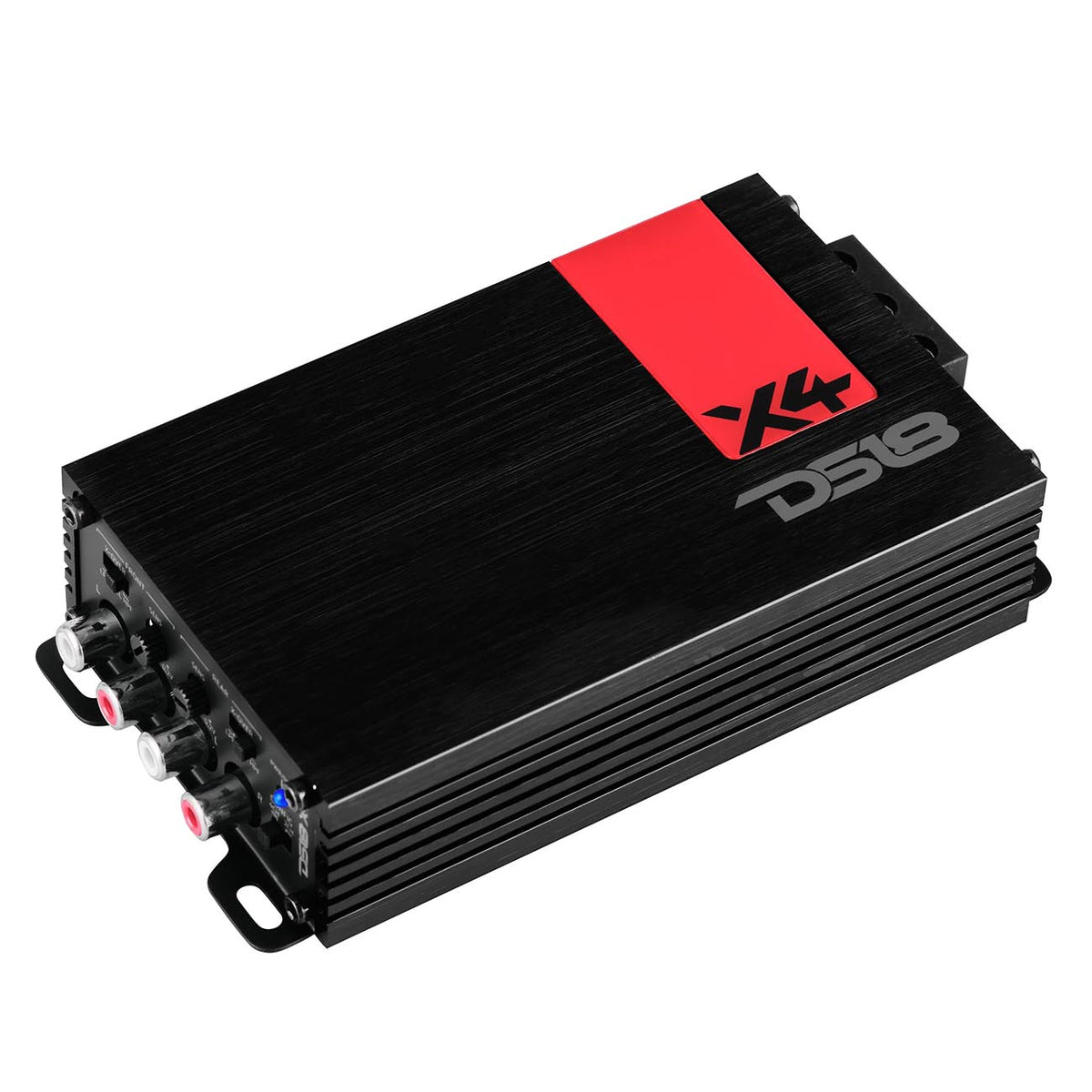

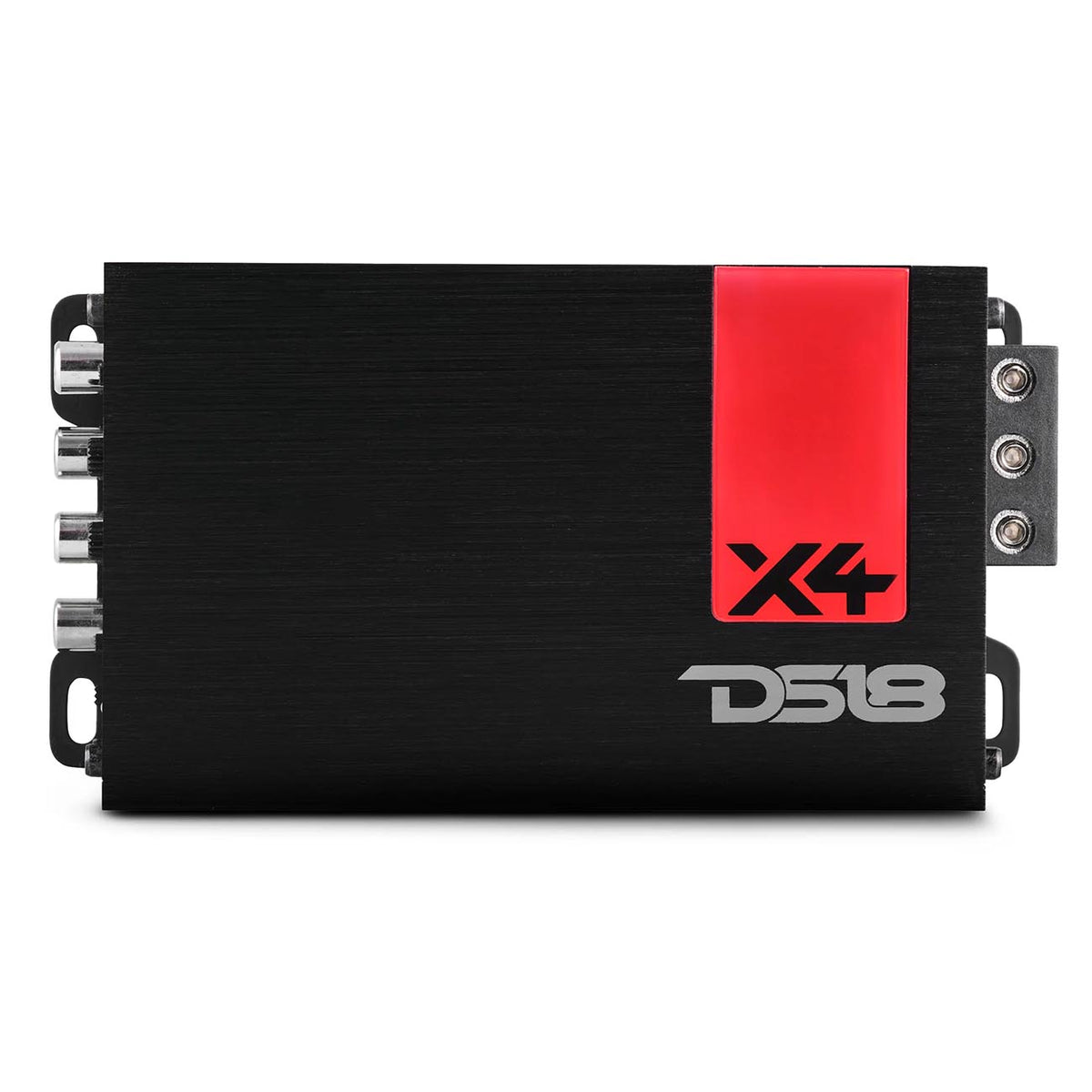

DS18 4 Channel Ultra Compact Amplifier, 560W RMS/1320W Max
$224.95
Skip to product information
DS18 4 Channel Ultra Compact Amplifier, 560W RMS/1320W Max
$224.95
DS18 4 Channel Ultra Compact Amplifier, 560W RMS/1320W Max
- Channels: 4 Channel
- RMS Power: 560W
- Peak/Max Power: 1,320W
- Stable to: 2 Ohm
- Amplifier Class: D
- SKU: X4
Specifications
- DS18 Ultra Compact Class-D 2 Channel Amplifier
- 560W RMS/1320W MAX
- 1320 Watts Peak
- 4 x 140 Watts RMS @ 2 Ohms
- 4 x 70 Watts RMS @ 4 Ohms
- 2 x 220 Watts RMS @ 4 Ohms Bridged
- DIM (W x H x L) 3.24″ x 1.37″ x 5.54″
- Class-D
- 2 Ohm Stable
- High Pass Crossover: 80Hz (Fixed)
- Low Pass Crossover: 80Hz (Fixed)
- Frequency Response: 20 Hz – 20 kHz
- Signal to Noise Ratio: 90dB
- RCA Inputs
- THD: 0.2%
- Protection: Thermal, Over-Load, DC Output, Short & Voltage
- Recommended Fuse Size: 45A (Not Included)
