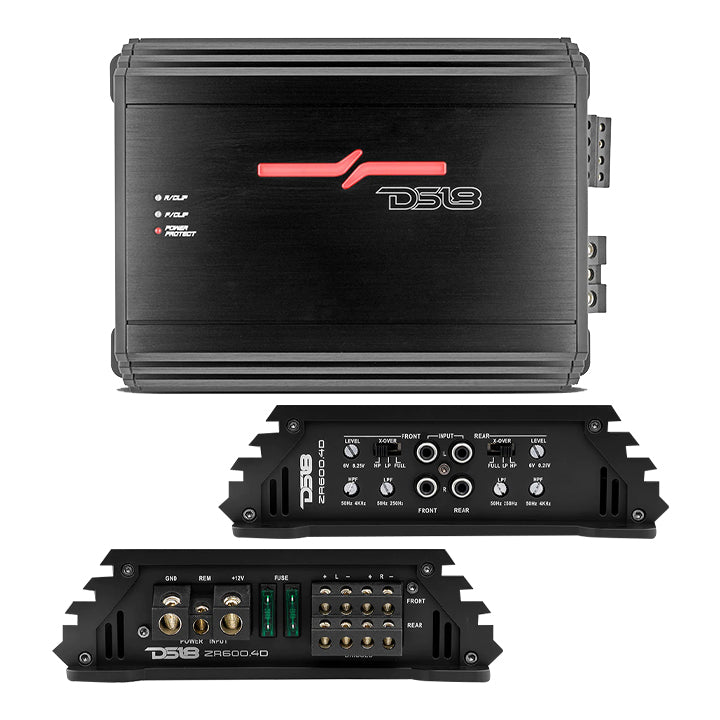

DS18 4 Channel Amplifier, 2400W MAX
$299.95
Skip to product information
DS18 4 Channel Amplifier, 2400W MAX
$299.95
DS18 4 Channel Amplifier, 2400W MAX
- Channels: 4 Channel
- Peak/Max Power: 2,400W
- Stable to: 2 Ohm
- Amplifier Class: D
- SKU: ZR6004D
Specifications
- DS18 ZR 4 Channel Amplifier, 2400W MAX
- Total Watts (Peak): 2400W
- 240 x 4 RMS @ 2 Ohms
- 150 x 4 RMS @ 4 Ohms
- 400 x 2 RMS @ 4 Ohms (Bridged)
- (W x H x L) 7.2″ x 2″ x 10″
- Class D
- 2 Ohm Stable
- Frequency Response: 20Hz – 20KHz
- High Pass Filter: 50 Hz – 2 kHz
- Low Pass Filter: 50 Hz – 250 Hz
- Signal to Noise Ratio: >90dB
- Efficiency at 4-Ohms: 90%
- Total Harmonic Distortion: 1%
- Input Range: 0.2v – 6v
- LED Indicator: Clipping, Power, Protect
- Power and Ground Terminal: 4 Ga
- Minimum Impedance: 2 Ohms
- Thermal, Over-Load, DC Output, Short Circuit Output, Voltage Input & Clipping Protection
