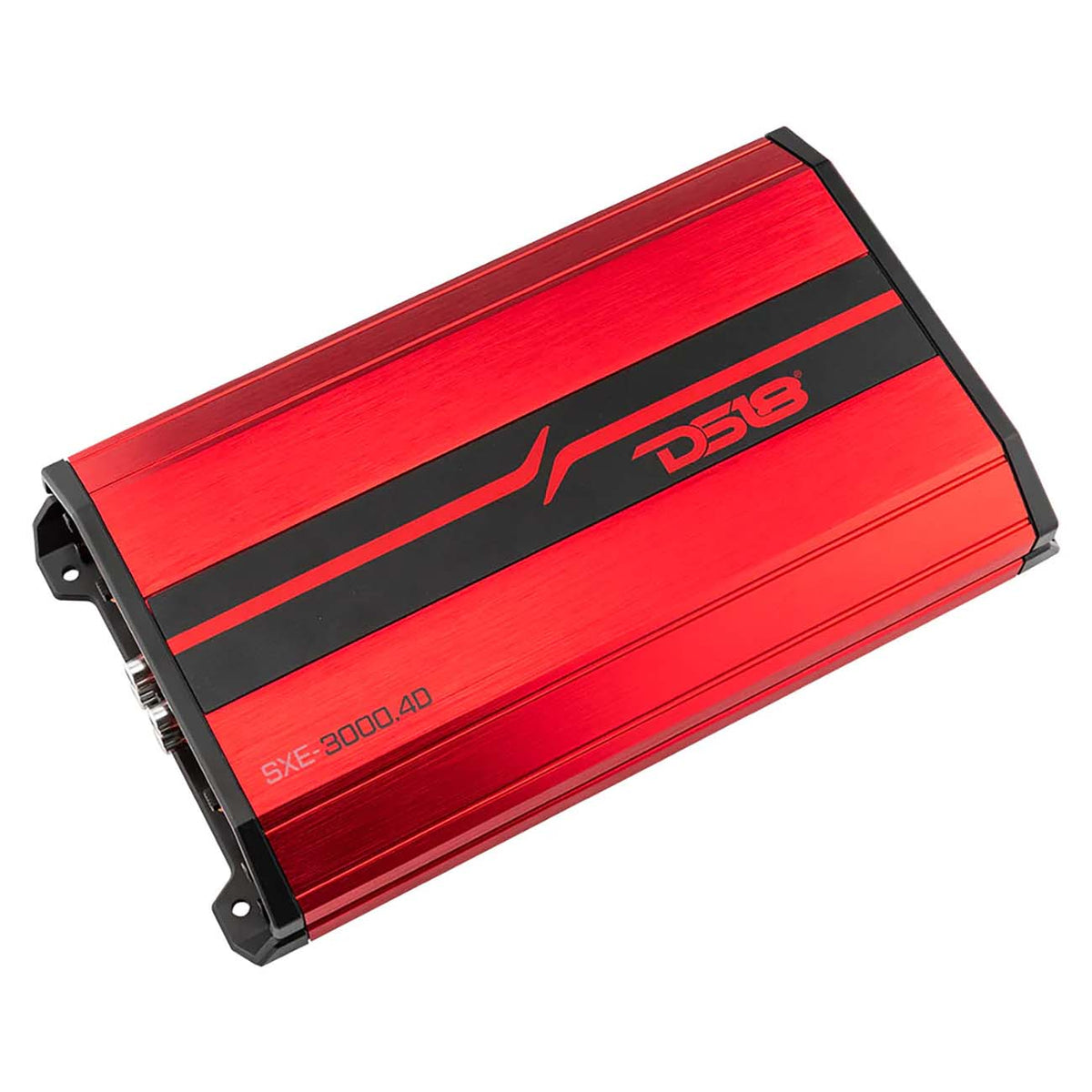

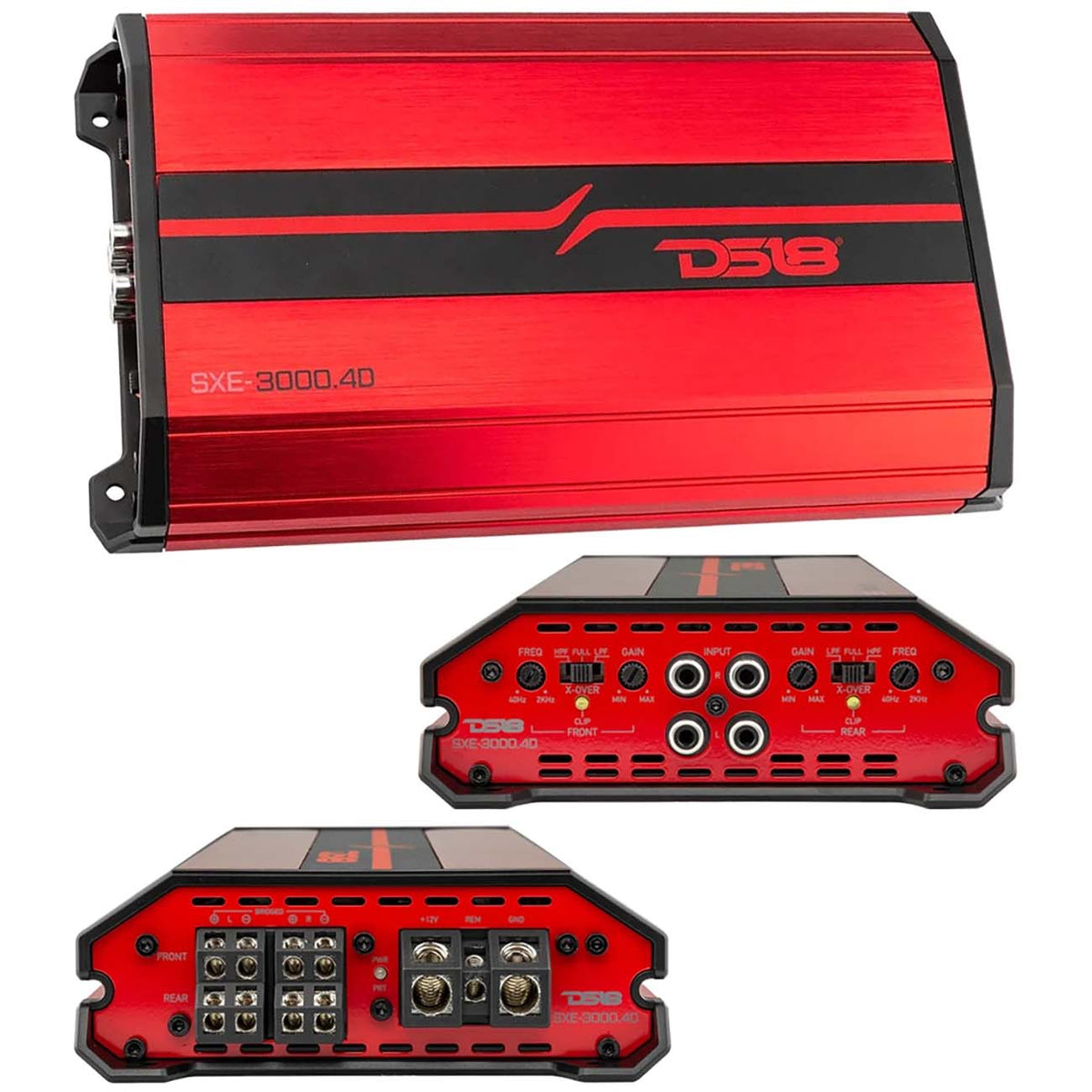

DS18 4 Channel Amplifier, 1280W RMS/3000W MAX - Red
$274.95
Skip to product information
DS18 4 Channel Amplifier, 1280W RMS/3000W MAX - Red
$274.95
DS18 4 Channel Amplifier, 1280W RMS/3000W MAX - Red
- Channels: 4 Channel
- RMS Power: 1,280W
- Peak/Max Power: 3,000W
- Stable to: 2 Ohm
- Amplifier Class: D
- SKU: SXE30004DRD
Specifications
- 4 x 320 Watts RMS @ 2 Ohms
- 4 x 200 Watts RMS @ 4 Ohms
- 2 x 500 Watts RMS @ 4 Ohms (Bridged)
- (W x H x L) 5.5″ x 1.8″ x 9.8″
- Fuse Size: 2 x 40A (80A)
- 2 Ohm Stable (Stereo)
- 4 Ohm (Bridged)
- Class D
- Red Brushed Aluminum Finish
- Frequency Response: 10 Hz – 20 kHz
- High Pass Filter: 40Hz – 2KHz
- Low Pass Filter: 40Hz – 2KHz
- Signal to Noise Ratio: 90dB
- Efficiency @ 4 ohms: 64%
- Damping Factor: 170
- Input Impedance: 20kΩ
- Channel Separation: 45dB
- Total Harmonic Distortion (THD): 0.05%
- Power/Ground: 4 Gauge
- Led Indicator: Power/Protect/Clip
- Over-Load, DC Output, Short Circuit & Voltage Protection
