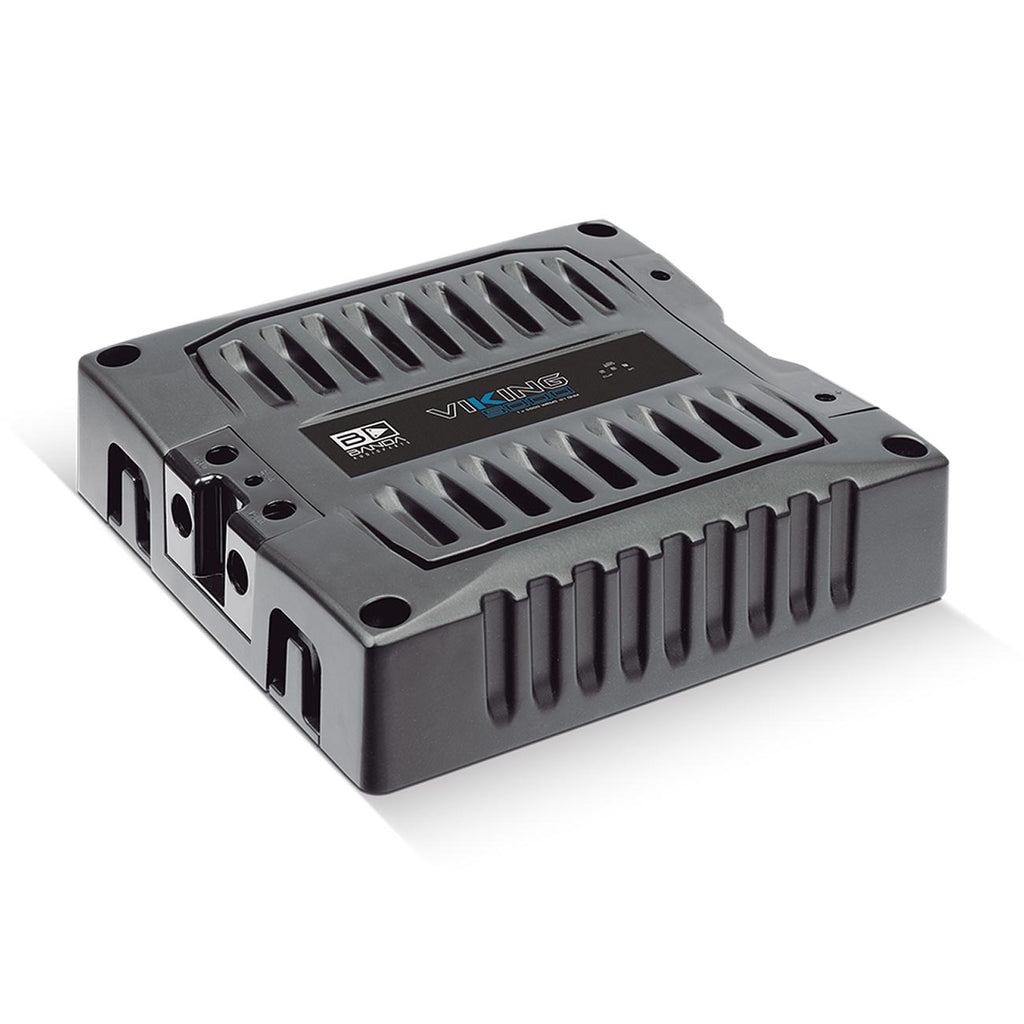

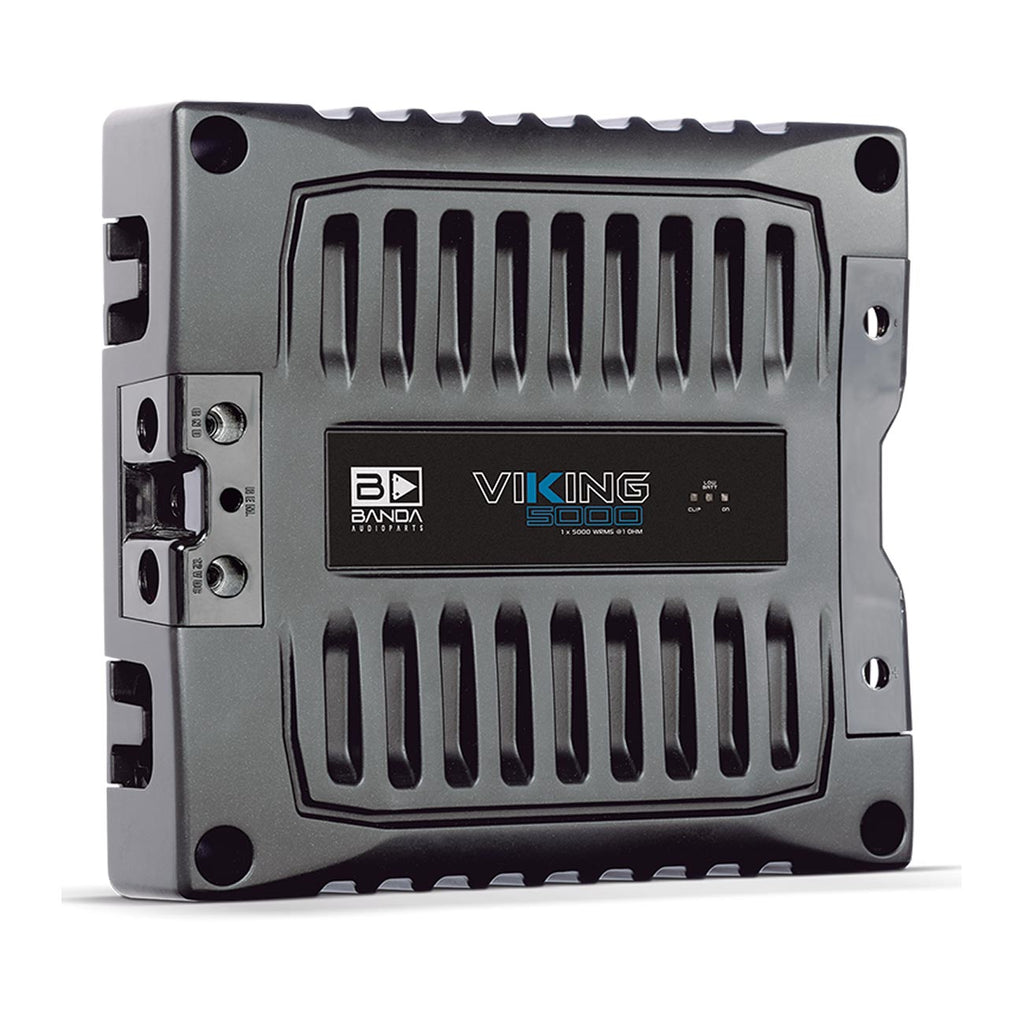

Banda Monoblock Amplifier, 5000W RMS

Banda Monoblock Amplifier, 5000W RMS

• Channels: Monoblock (1 Channel)
• RMS Power: 5,000W
• Stable to: 1 Ohm
• Amplifier Class: D
• SKU: VIKING5001

Specifications

• Banda Viking Line Monoblock Amplifier, 5000W RMS
• 5000 x 1 Watts RMS @ 1 Ohm (12.6V)
• 3100 x 1 Watts RMS @ 2 Ohms (12.6V)
• Recommended Fuse: 250A (Not Included)
• (W x H x L) 9.3″ x 2.5″ x 8.9″
• Full Range Class D
• 1 Ohm Stable
• Frequency Response: 20Hz – 20Khz (-3dBs)
• High Pass Crossover: 16Hz – 100Hz @ 12dB/Oct Linkwitz-Riley
• Low Pass Crossover: 80Hz – 20kHz @ 12dB/Oct Linkwitz-Riley
• Bass Boost: 30Hz to 80Hz (0 to +12dB)
• Efficiency @ 1 Ohm: 78%
• Input Voltage: 9 – 15V
• Input Impedance: 100K Ohms
• THD maximum power: < 0.10%
• Input Sensitivity: 150mV – 7V
• Signal to Noise Ratio: 80dB
• Power, Clipping, Protect & Low Battery LED Indicators
