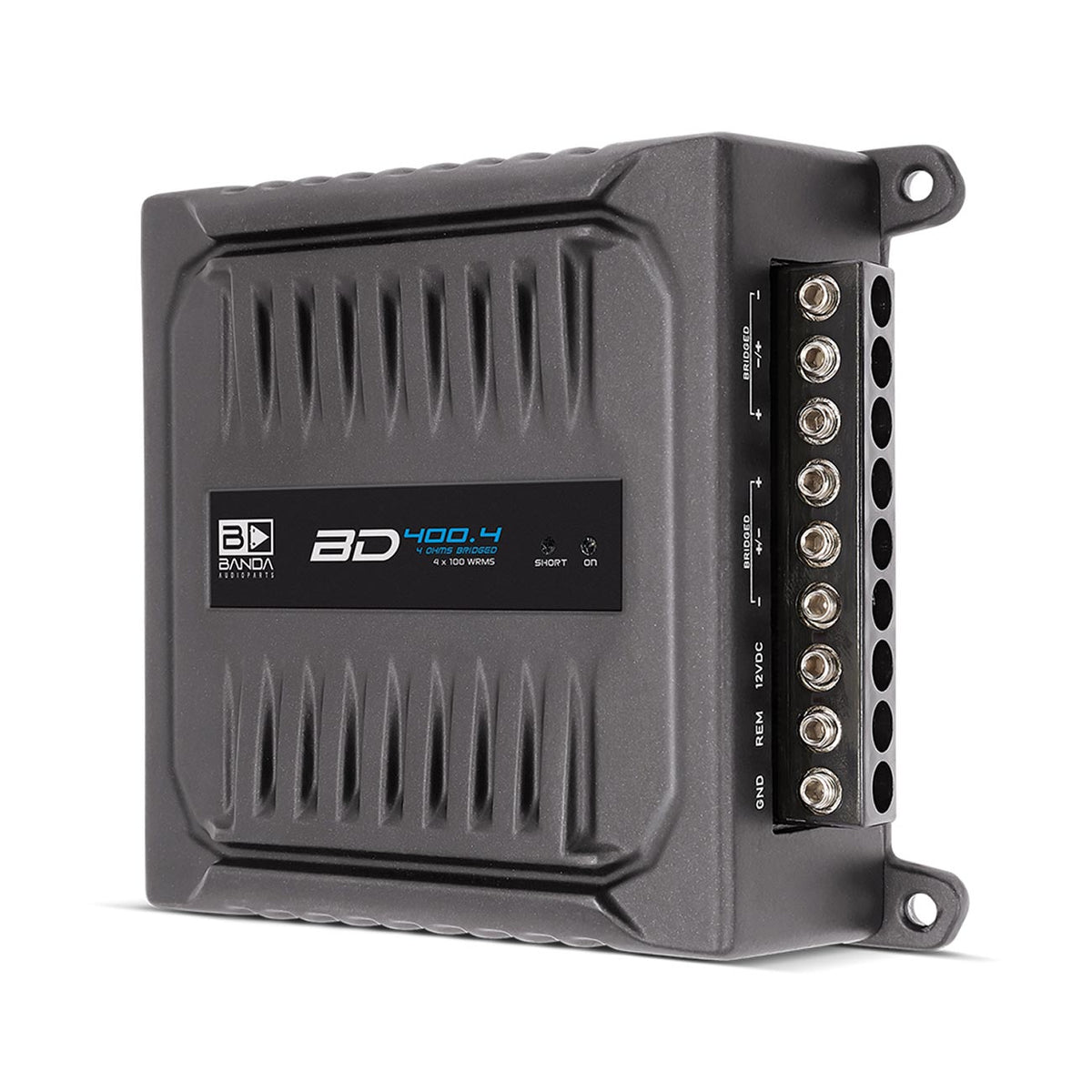

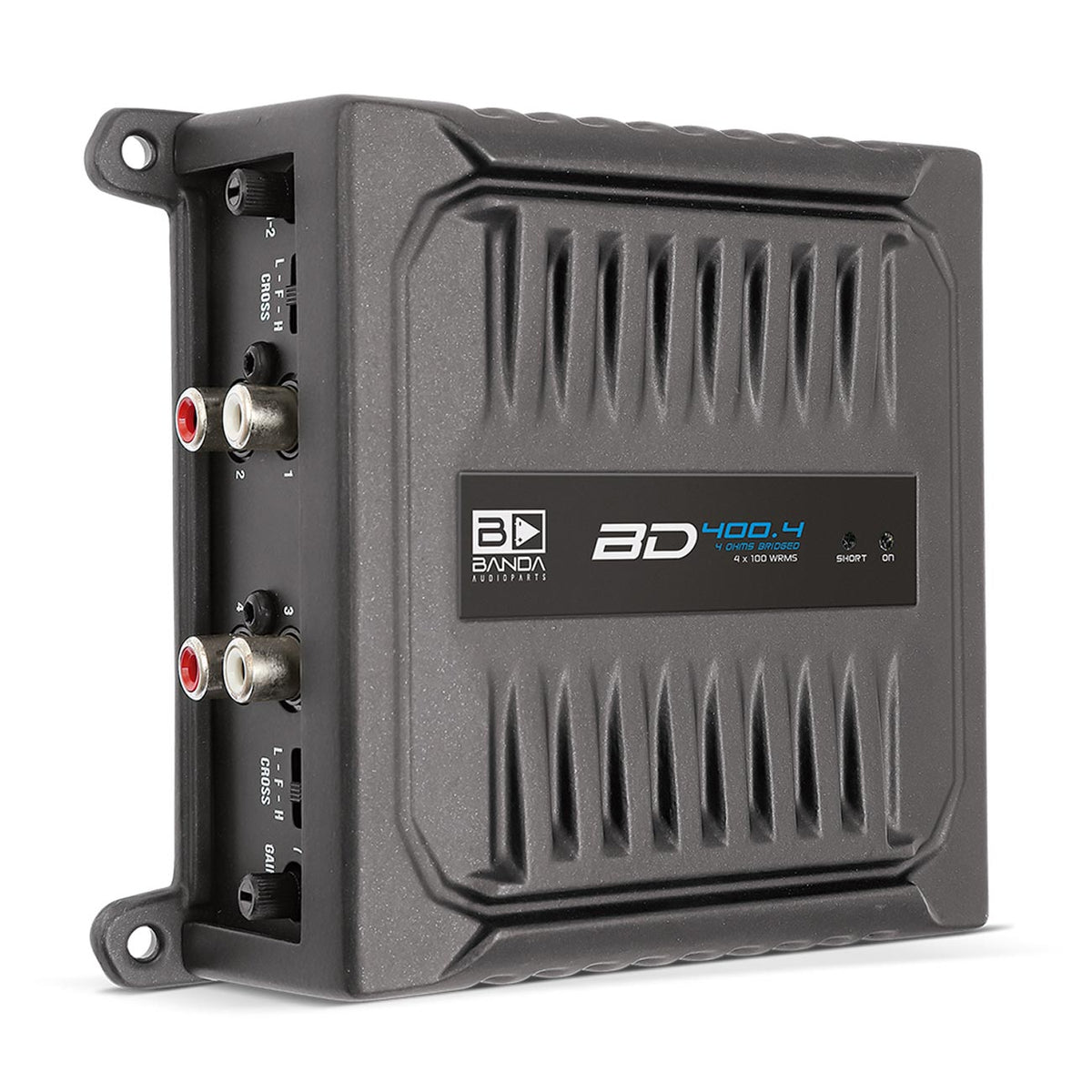

Banda Compact 4 Channel Amplifier, 400W RMS
$130.00
Skip to product information
Banda Compact 4 Channel Amplifier, 400W RMS
$130.00
Banda Compact 4 Channel Amplifier, 400W RMS
- Channels: 4 Channel
- RMS Power: 400W
- Stable to: 2 Ohm
- Amplifier Class: D
- SKU: BD4004
Specifications
- Banda Compact Pocket Line 4 Channel Amplifier, 400W RMS
- 140 x 4 Watts RMS @ 2 Ohms (14.4V)
- 85 x 4 Watts RMS @ 4 Ohms (14.4V)
- 280 x 2 Watts RMS @ 4 Ohms (14.4V) (Bridged)
- 100 x 4 Watts RMS @ 2 Ohms (12.6V)
- 65 x 4 Watts RMS @ 4 Ohms (12.6V)
- 200 x 2 Watts RMS @ 4 Ohms (12.6V) (Bridged)
- Recommended Fuse: 30A (Not Included)
- (W x H x L) 4.6″ x 2.1″ x 5″
- Full Range Class D
- 2 Ohm Stable
- Frequency Response: 20Hz – 20Khz (-3dBs)
- Low Pass Crossover: 20Hz – 90Hz @ 12dB/Oct Linkwitz-Riley
- High Pass Crossover: 90Hz – 20kHz @ 12dB/Oct Linkwitz-Riley
- Efficiency @ 2 Ohms: 82%
- Efficiency @ 4 Ohms: 87%
- Input Voltage: 9 – 16V
- Input Impedance: 47K Ohms
- THD maximum power: < 1%
- Input Sensitivity: 180mV – 3.4V
- Signal to Noise Ratio: 85dB
- Power & Protect LED Indicators
