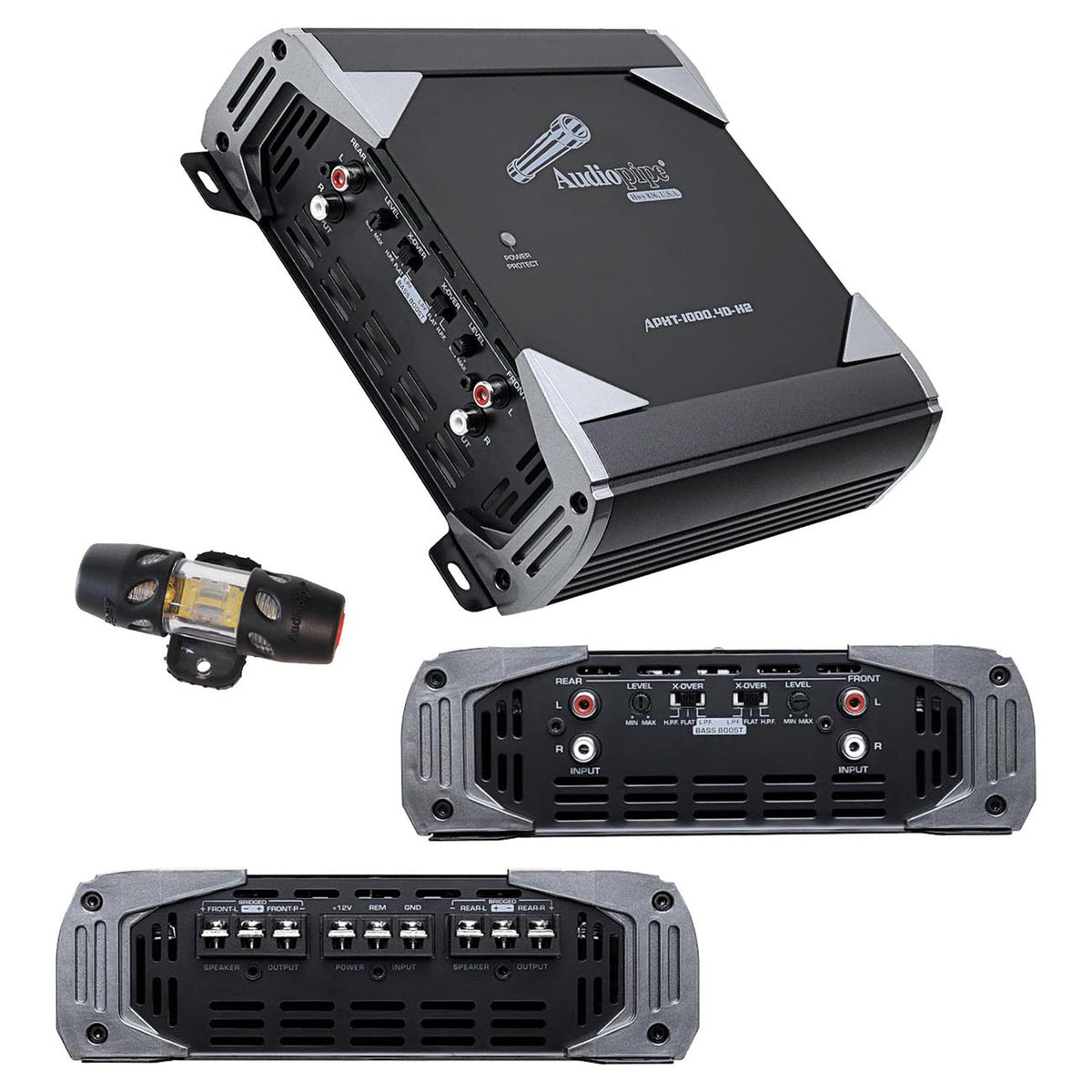

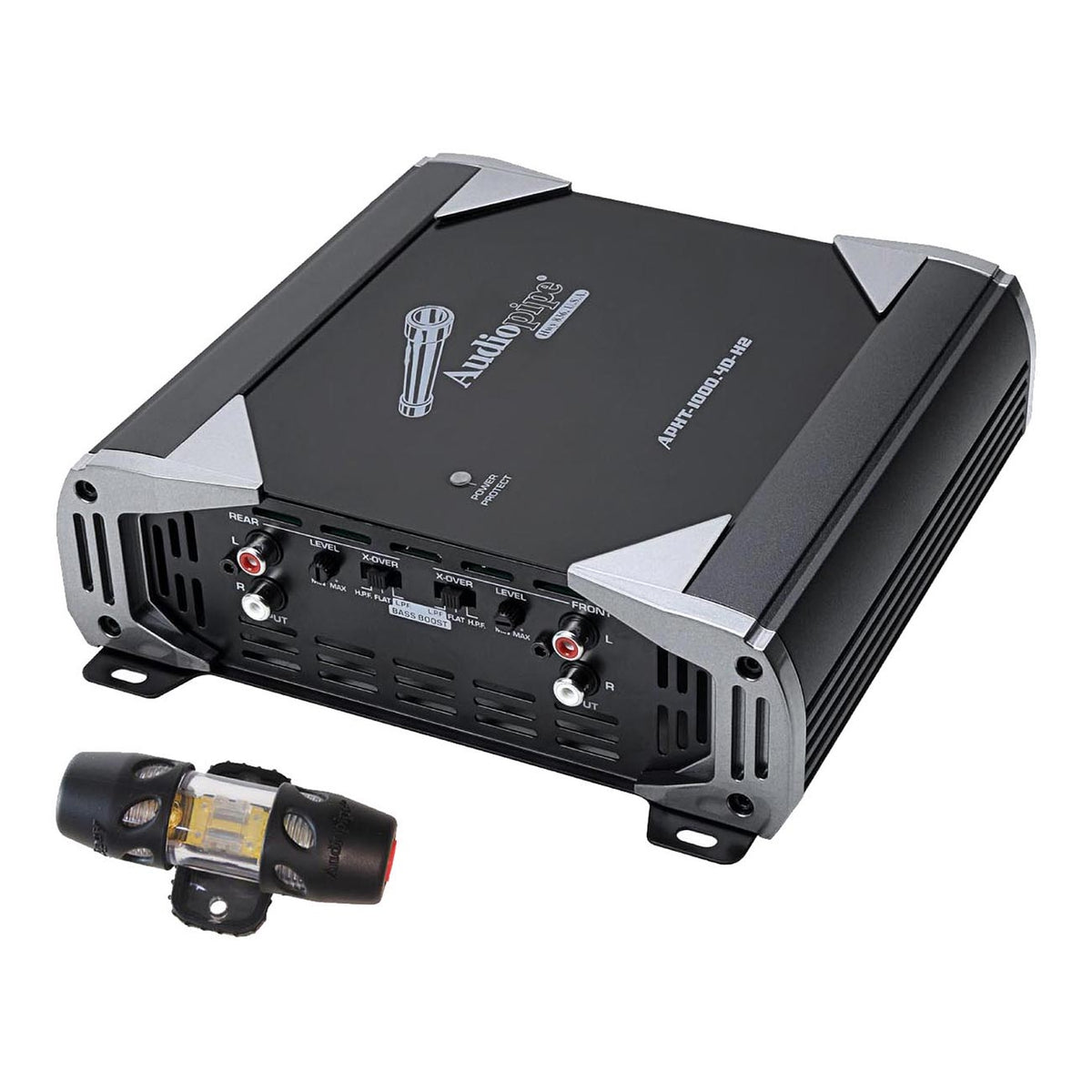

Audiopipe Full Range 4 Channel Amplifier, 2500W MAX

Audiopipe Full Range 4 Channel Amplifier, 2500W MAX

• Channels: 4 Channel
• Peak/Max Power: 2,500W
• Stable to: 2 Ohm
• Amplifier Class: D
• SKU: APHT10004DH2

Specifications

• Audiopipe Full Range 4 Channel Transistor Amplifier, 2500W MAX
• 4 x 230 RMS @ 2 Ohm (14.4V – 84A)
• 4 x 140 RMS @ 4 Ohm (14.4V – 46A)
• 2 x 460 RMS @ 4 Ohm Bridged (14.4V – 86A)
• (W x H x L) 8.3″ x 2.4″ x 7.9″
• Class D
• 2 Ohm Stable
• MOSFET Power Supply
• Frequency Response: 20 Hz – 20 KHz
• Low Pass: 90Hz 12dB/Oct.
• High Pass: 90Hz 12dB/Oct.
• BASS BOOST: 0-12 dB @ 55Hz
• Gain Control: 0.2 – 12V
• THD: ≤0.9%
• S/N Ratio: >85 dB
• RCA Inputs
• Under-voltage Protection: 9V
• Included: 60A Fuse & Fuse Holder
